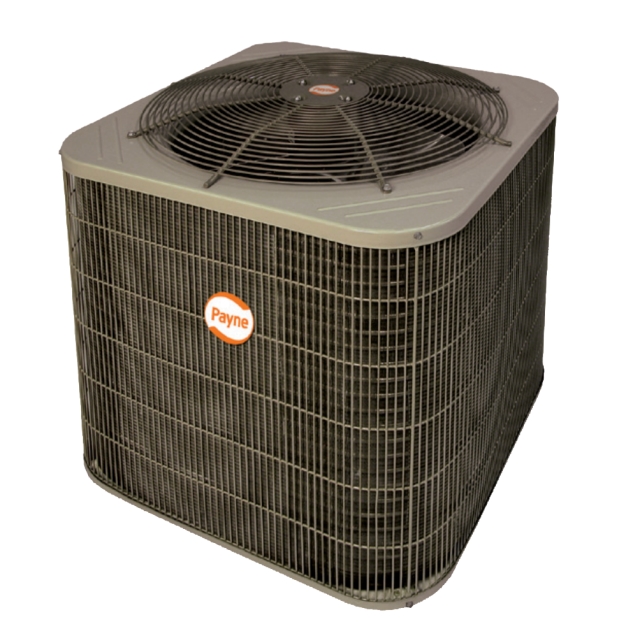

4-Ton 14 SEER R410A Heat Pump (208/230 V ***3-PHASE***)
This product is obsolete
4-Ton 14 SEER R410A Heat Pump (208/230 V ***3-PHASE***)
Description
PH14PB04800G
PH14 = 14 SEER Heat Pump
P = 208/230 ---60 ---3
B = Puron
048 = 48,000 Btuh
00G = Dense Grille
PH14 = 14 SEER Heat Pump
P = 208/230 ---60 ---3
B = Puron
048 = 48,000 Btuh
00G = Dense Grille
FEATURES & BENEFITS
- Quiet performance (as low as 69 decibels)1
- Single-stage compressor operation
- Durably built to withstand bad weather and debris
- Designed for corrosion resistance and lasting performance
- 10-Year Parts Limited Warranty*
SPECIFICATIONS
- Single-stage scroll compressor
- Single-speed fan motor
- System protecting high- and low-pressure switches and filter drier
- Durable, protective inlet grille panels allow easy coil cleaning
- Galvanized steel cabinet that includes a weather protiective paint for durability
- Non-ozone depleting R-410A refrigerant
- Cooling capacity: 1.5–5 tons
Specifications
- BrandWeathermaker
- CoastalFalse
- Compressor Stage1
- ConfigurationVertical
- Cooling Capacity46000
- Line Voltage (60Hz)240V
- Nominal Seer14
- RefrigerantR410A
- Tonnage4
- Voltage (Phase)208/230 V 3-Phase
- Air FlowVertical
- CFM Nominal3365
- Coil Guard TypeGrill
- Compressor RLA10.44
- Compressor TypeScroll
- Condenser Motor HP1/4
- Condenser Motor RPM1110 rpm
- Condenser Motor Speeds1 - Speed
- Condenser Motor TypePermanent Split Capacitor
- Frequency60
- Height28.44 in
- High PressureFalse
- High Pressure SwitchTrue
- HSPF8.2
- InverterFalse
- LEED CertifiedFalse
- Length31.19 in
- Liquid Line FittingSweat
- Liquid Line Size3/8
- Low PressureFalse
- Low Pressure SwitchTrue
- LRA60
- Max Sound Level79
- Maximum Circuit Breaker15
- Maximum COP3.94
- Maximum EER11.7
- Maximum Heating Capacity27800
- Maximum Piping Length250
- Maximum Voltage253
- MCA15
- Metering DeviceTXV
- Metering Device HeatingPiston
- Minimum EER11.7
- Minimum Heating Ambient Temperature-20
- Minimum Voltage187
- Motor Phase3
- Number Of Fan Blades3
- Outdoor Fan Motor FLA1.45
- Outdoor FPI20
- Outdoor Number of Rows2
- SEER14
- Shipping Height33.25 in
- Shipping Length33.38 in
- Shipping Weight232 lb
- Shipping Width33.38 in
- Sound BlanketFalse
- Sound BlanketFalse
- Suction Line FittingSweat in
- Suction Line Size7/8
- UL ListedFalse
- UL RecognizedFalse
- Weight197 lb
- Width31.19 in
