This product is obsolete
PLAIN F200
This product is obsolete
PLAIN F200
Description

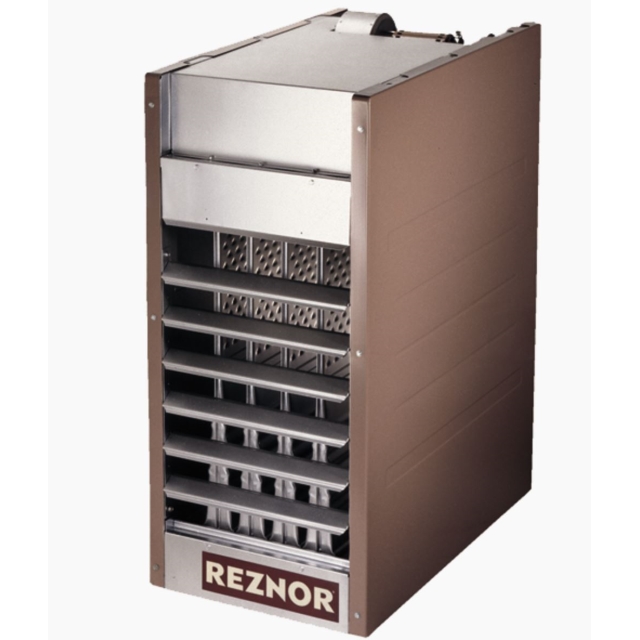

Nortek Global HVAC (Reznor HVAC) 23-1/4" x 13/16" x 40-1/8", 115 VAC 60 Hz 1-Phase, 4 FLA, 300 W, 200000 BTU/Hr Input, 160000 BTU/Hr Output, 2800 CFM, Aluminized Steel, Horizontal/Vertical Mount, Natural Gas, Gravity Vented, Gas-Fired Unit Heater
Features & Benefits
- Spark Ignited, Intermittent Safety Pilot with Electronic Flame Supervision
- Fan and Limit Safety Controls
- Blocked Vent Shutoff System
- Individually Adjustable Horizontal Louvers
- Full Safety Fan Guard
- Convenient Bottom Burner Access
Specifications
- Type: Gravity Vented
- Voltage Rating: 115 Volt AC 60 Hertz
- Current Rating: 4 Amp Full Load
- Power Rating: 375 Watt
- Number of Phases: 1
- Capacity: 300000 BTU/Hour (Input), 240000 BTU/Hour (Output)
- Heating Element: Aluminized Steel
- Control Type: 24 Volt Transformer
- Air Flow Rate: 3800 CFM
- Size: 28-3/4 Inch Width x 13/16 Inch Depth x 43-1/2 Inch Height
- Mounting: Horizontal/Vertical
- Application: Retail, Showrooms, Workshops. Industrial Manufacturing, Warehouse/Distribution
- Approval: CSA ANSI Z83.8, CQS, CAN/CGA 2.6 Gas Type 3/4 Inch Natural; Venter Outlet Diameter 10 Inch (Oval); Fan Diameter 22 Inch; Motor Speed Rating 850 RPM; Outlet Velocity 1426 FPM
Specifications
- BrandReznor
- BTU Input200000
- Packaged Heater TypeGravity Vented
