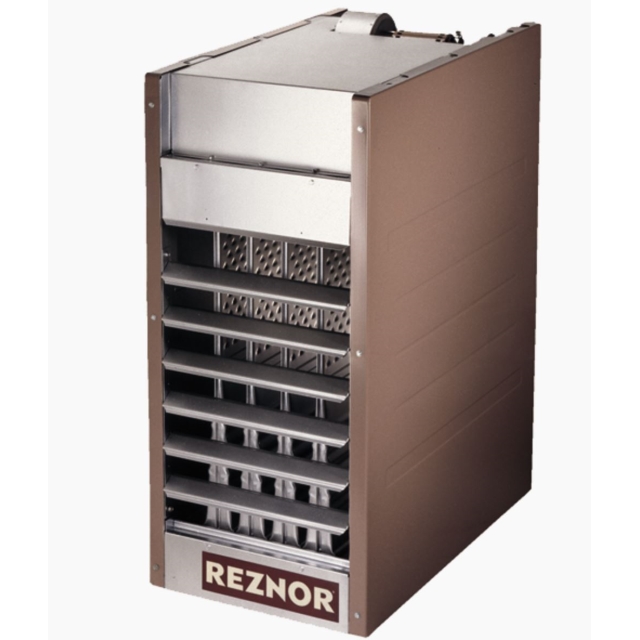

Reznor® Series 100, Model F gas-fired, gravity-vented unit heaters are designed for 80% thermal efficiency and are designed for use with natural or propane gas, as specified, in sizes from 25,000 to 400,000 BTUH gas input. Model F unit heaters are designed for ceiling suspension with a propeller fan for air delivery. A terminal strip connector facilitates field connection to a remote 24-volt thermostat for automatic operation. Each unit is provided with a fan control and all required limit safety controls, including an energy cutoff (ECO) device and a blocked vent switch.

Features & Benefits

• Spark ignited, intermittent safety pilot with electronic flame supervision
• Single-stage combination gas valve
• Fan and limit safety controls
• Energy cutoff (ECO) device
• Blocked vent shutoff system
• Individually adjustable horizontal louvers
• Full safety fan guard
• Terminal strip connector for 24-volt field wiring
• Convenient bottom burner access

Specifications

• Type: High Efficiency, Corrosion Resistant, Gravity Vented
• Voltage Rating: 115 Volt AC 60 Hertz
• Current Rating: 0.8 Amp (Full Load), 0.33 Amp at 24 Volt (Control)
• Power Rating: 60 Watt
• Number of Phases: 1
• Capacity: 25000 BTU/Hour (Input), 20000 BTU/Hour (Output)
• Heating Element: Aluminized Steel
• Control Type: Thermostat
• Fan/Motor Type: Propeller Fan, 1/50 (Standard) 1550 RPM Motor
• Air Flow Rate: 380 CFM
• Size: 13-1/2 Inch Width x 27 Inch Depth x 30-1/8 Inch Height
• Mounting: Ceiling Mount
• Application: Commercial, Industrial, Retail, Showroom, Workshop, Warehouse
• Approval: CSA CAN/CGA 2.6, CQS
• Fuel Type Natural Gas
• Ignition Type Pilot Spark
• Gas Connection Size 1/2 Inch
• Fan Diameter 10 Inch
• Vent Outlet Diameter 4 Inch Round
• Air Volume 380 CFM
• Outlet Velocity 423 FPM
