Features & Benefits

• Stainless Steel Power Element Prevents Corrosion and Valve Failure
• External Superheat Adjustment
• Replaceable Inlet Strainer
• Angle Configuration SAE Connection Only
• Wrench Flats on Inlet and Outlet
• External or Internal Equalizer

Specifications

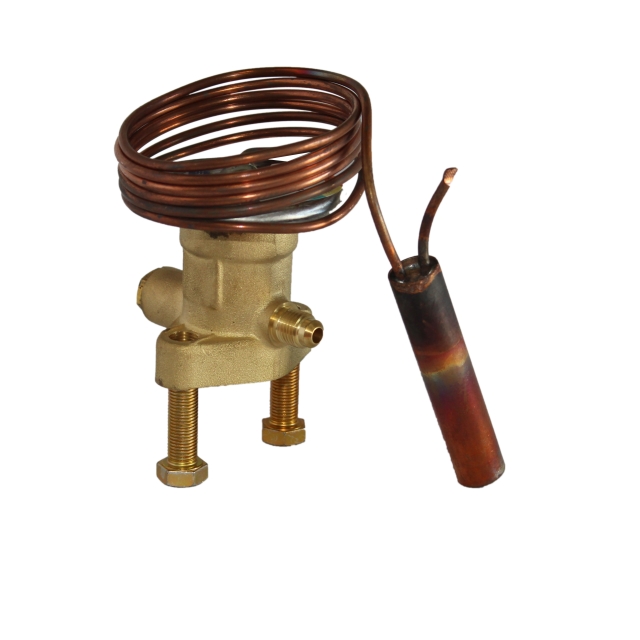

• Type: Hermetic Design, Adjustable Superheat, 90 Degree
• Nominal Size: 3/8 Inch x 3/8 to 1/2 Inch
• End Connection: SAE Flare x SAE Flare
• Pressure Rating: 700 PSIG
• Inclusions/Features: Internal Equalizer, Stainless Steel Power Element, Replaceable Inlet Strainer
• Application: Commercial Refrigerant, Air Conditioner
• Applicable Standard: UR/CUR, CRN
Capillary Tube Length 5 Foot; Refrigerant Type R-12; Capacity 1 Ton; Charge Code Medium Temperature; Height 3.41 Inch
