POWER ASYXB-1019HC-2B10FTSAEEE
POWER ASYXB-1019HC-2B10FTSAEEE
Description

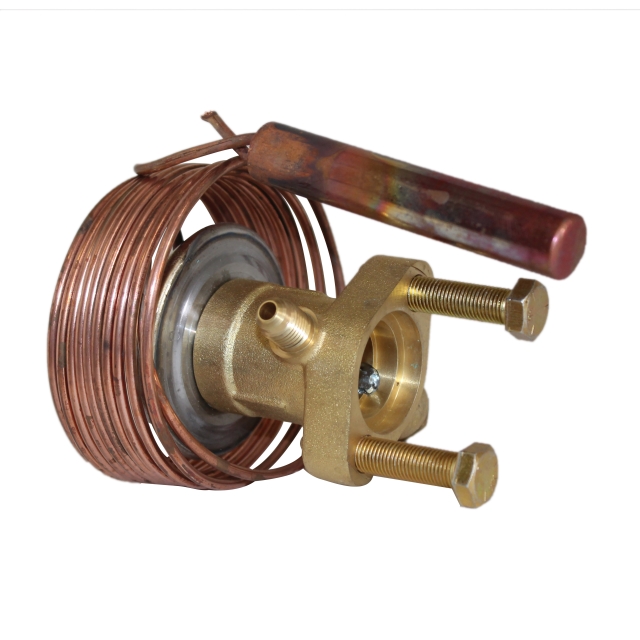

Emerson Electric Co. (White-Rodgers) 10' Cap, R-22, Power Assembly for TCL/TCLE/TJLE/TJR Thermostatic Expansion Valve
Features & Benefits
- Take-Apart Construction for Easy Field Service
- External Superheat Adjustment
- Bi-Directional Capability
- Stainless Steel Power Assembly
Specifications
- Type: Take-Apart, Bi-Directional, Adjustable Superheat, Small Capacity, Straight Through
- Nominal Size: 5/8 Inch x 7/8 Inch
- End Connection: ODF Soldered x ODF Soldered
- Pressure Rating: 450 PSIG
- Inclusions/Features: External Equalizer, Stainless Steel Power Assembly
- Exclusions: Bleed Hole
- Application: Refrigerant, Air Conditioner and Heat Pump Capillary Tube Length 5 Foot; Refrigerant Type R-22; Capacity 7-1/2 Ton; Charge Code Medium Temperature; Bolt Torque Rating 300 Inch-Pound
Replacement for
Specifications
- BrandFactory Authorized Part
- RefrigerantR22, R407C
- Capillary Length120 in
- Maximum Working Pressure450 PSIG
- Shipping Height4 in
- Shipping Length8 in
- Shipping Point37406
- Shipping Weight5 lb
- Shipping Width4 in
