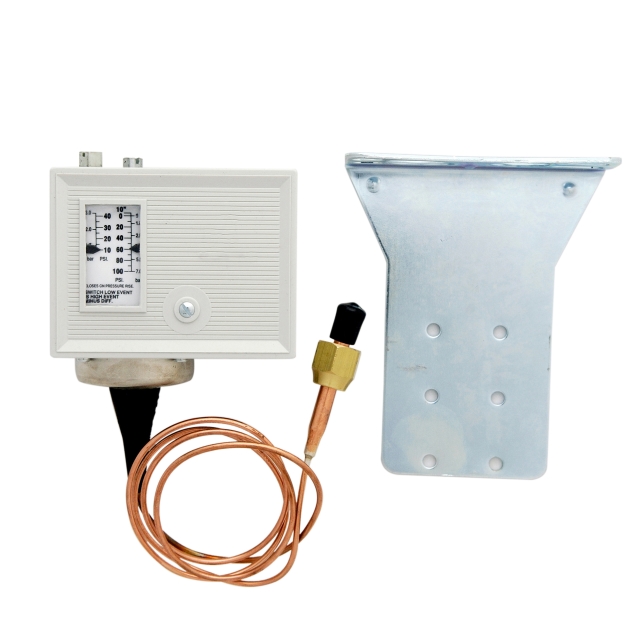

PRESSURE CONTROL
PRESSURE CONTROL
Description
- Controls available for most refrigerant types
- High-amp rated switch (SPST) design (O10-1402/O10-1483)
- Super Cap capillary vibration protection system
- Non-conductive front cover with captive screw
- Adjustable differential and range
- Easy-to-read scale plate
- Vibration cone (absorbs and reduces vibration away from brazed joint)
- Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
Low Pressure Controls
- Low Pressure Controls
- Capillary Length: 36" (0.9m)
- Reset: Auto
- Switch: SPST
- Differential: 10 to 40 PSI (1 to 3 bar)
- Pressure Connection: 1/4" SAE flare nut
- Pressure Range: 10" Hg to 100 PSI (0.3 to 7 bar)
- Comments: IP44 part number: 206-00232-002
- Region: NA
Documents
There are no documents available.
Specifications
- BrandFactory Authorized Part
- Shipping Height2.7 in
- Shipping Length4.3 in
- Shipping Point37406
- Shipping Weight0.85 lb
- Shipping Width6.6 in
