PRESSURE CONTROL
PRESSURE CONTROL
Description
- NEMA 1 enclosure with non-conductive cover
- Front-located captive cover screw
- Large, easy-to-read scale plate
- Super Cap capillary protection system
- Universal mounting and compact design
- Screw terminals are raised and fully accessible for easy wiring
- Laser-welded bellows for extended life
- Heavy-duty plated steel frame
- Suitable for R12, R22, and R502 applications
- Cap included on all Australia temperature controls. Optional for all other regions.

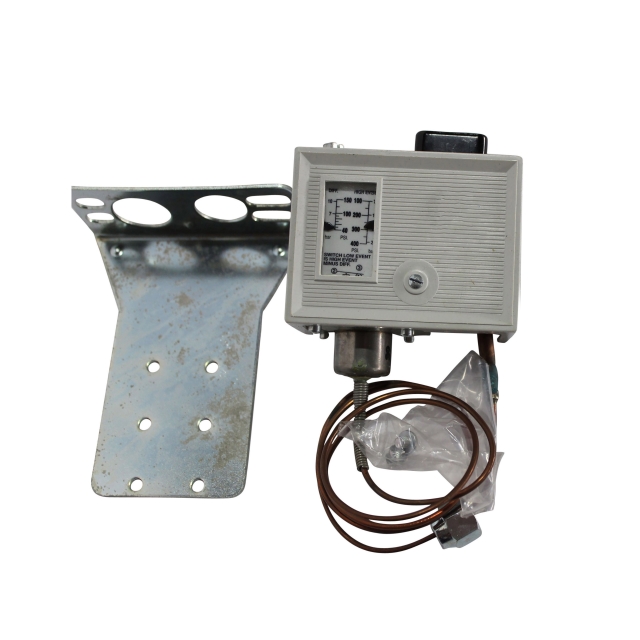

Single High Pressure Control
- Single High Pressure Control
- Capillary Length: 36" (0.9m)
- Reset: Auto
- Switch: DPST
- Differential: 40 to 150 PSI (3 to 10 bar)
- Pressure Connection: 1/4" SAE Flare Nut
- Pressure Range: 100 to 400 PSI (7 to 27 bar)
- Comments: IP44 part number: 206-00232-002
- Region: NA
Documents
There are no documents available.
Specifications
- BrandFactory Authorized Part
- Shipping Height2.6 in
- Shipping Length6.6 in
- Shipping Point37406
- Shipping Weight1.3 lb
- Shipping Width4.3 in
