PRESSURE SWITCH
PRESSURE SWITCH
Description

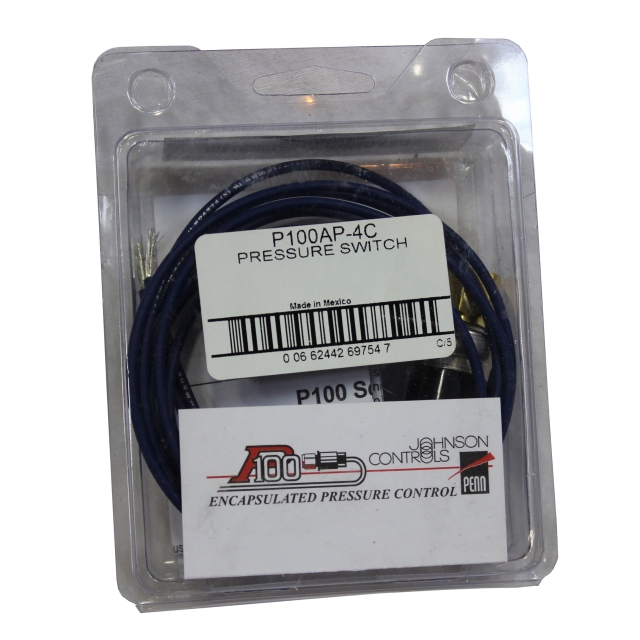

Johnson Controls (Penn Controls) 1/4" Female Flare, 6 FLA, 36 RLA, 120/240 VAC, SPST, 170/250 PSIG, Snap-Acting Diaphragm, Non-Adjustable, Encapsulated, Direct Mount, Pressure Switch
Features & Benefits
- Compact Size and Lightweight Allow for Direct Mounting
- Trip-Free Manual Reset
- Contacts cannot be Overridden by Continued Depression of the Reset Button
- Dust Tight
Specifications
- Type: Non-Adjustable, Standard Duty, Encapsulated, Direct Mount
- Contact Configuration: SPST
- Contact Rating: 5.8 Amp at 120 Volt AC/2.9 Amp at 240 Volt AC (Full Load), 34.8 Amp at 120 Volt AC/15 Amp at 240 Volt AC (Locked Rotor), 375 Volt Amp (Pilot Duty)
- Connection Type: 1/4 Inch Internal Flare
- Application: Low Limit, High Limit and Fan Cycling Control in Commercial Refrigerant, Ice Machine, Food Service Equipment
- Approval: UL (Canada and US)
Specifications
- BrandJohnson Controls
- Burst Pressure3500 PSI
- Height1.3 in
- Length5.4 in
- Max Operating Pressure250 PSIG
- Mounting MethodDIRECT
- Operating Humidity Range0 To 95
- Quick-Connect Terminal Description1/4 In Female SAE
- Shipping Height1.3 in
- Shipping Length4.3 in
- Shipping Point37406
- Shipping Weight0.01 lb
- Shipping Width5.3 in
- UL ListedFalse
- UL ListedFalse
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage120/240
- Weight0.14 lb
- Width4.2 in
