Johnson Controls

PRESSURE SWITCH

SKU:P100CA-2C
Johnson Controls

PRESSURE SWITCH

SKU:P100CA-2C

    Description

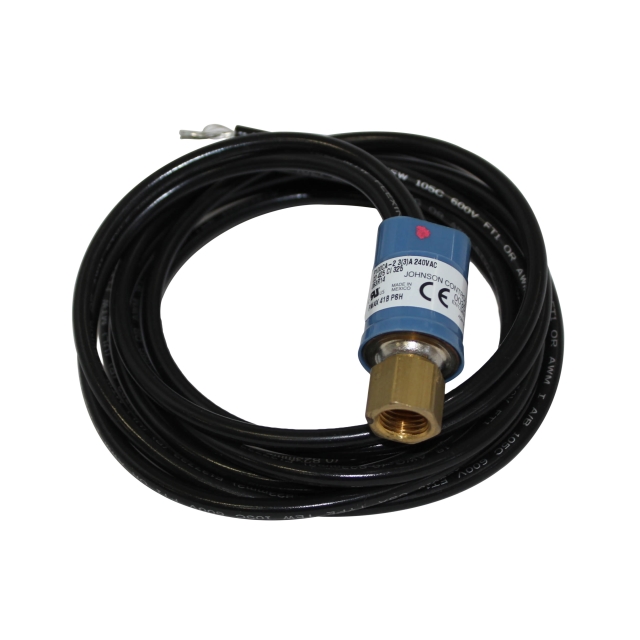

    Johnson Controls (Penn) 1/4" Internal Flare, SPST, Non-Adjustable, Standard Duty, Encapsulated, Direct Mount, Encapsulated Pressure Switch

    P100 Series switches are encapsulated, nonadjustable, single-pole, single-throw (SPST), direct-mount switches for use with non-corrosive refrigerants. The switches are available with automatic reset in both open low and open high configurations and manual reset with open high action. Refer to the P100 Series Encapsulated Pressure Controls Product Bulletin (LIT-121485) for important product application information.

    Features & Benefits

    • Compact Size and Lightweight Allow for Direct Mounting
    • Trip-Free Manual Reset
    • Contacts cannot be Overridden by Continued Depression of the Reset Button
    • Dust Tight

    Specifications

    • Type: Non-Adjustable, Standard Duty, Encapsulated, Direct Mount
    • Operating Pressure Rating: 400 PSI (Open), 300 PSI (Close)
    • Contact Configuration: SPST
    • Contact Rating: 6 Amp at 120/240 Volt AC (Full Load), 36 Amp at 120/240 Volt AC (Locked Rotor), 375 Volt Amp (Pilot Duty)
    • Application: Low Limit, High Limit and Fan Cycling Control in Commercial Refrigerant, Ice Machine, Food Service Equipment
    • Approval: UL (Canada and US)

    Specifications

    • BrandJohnson Controls
    • Burst Pressure3500 PSI
    • Operating Humidity Range0 To 95
    • Power Rating375 VA
    • Quick-Connect Terminal Description1/4 In Female SAE
    • Shipping Height4 in
    • Shipping Length4 in
    • Shipping Point37406
    • Shipping Weight1 lb
    • Shipping Width4 in
    • UL ListedFalse
    • UL ListedFalse
    • UL RecognizedFalse
    • UL RecognizedTrue
    • Voltage120/240
    • Weight0.22 lb
