PRESSURE SWITCH
PRESSURE SWITCH
Description

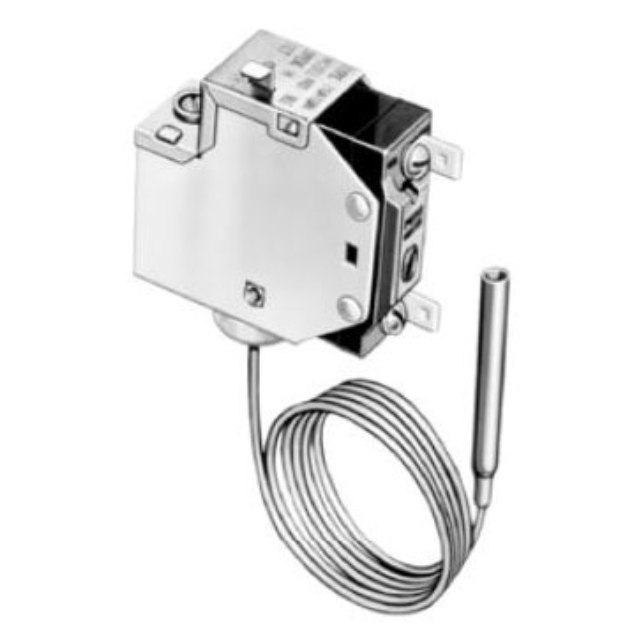

Johnson Controls (Penn) 36" Capillary, 1/4" Soldered Tube Connection, 120 to 277 VAC, 100 to 425 PSI, SPDT, Bracket Mount, Air Conditioning/Pressure Cutout Control
Features & Benefits
- Accurate Repeatability
- Compact Size
- Trip-Free Manual Reset
- The Setpoint is Screwdriver Adjustable
Specifications
- Minimum AC Voltage: 120 Volt
- Maximum AC Voltage: 277 Volt
- Control Mode: SPDT
- Operating Temperature: 140 Deg F
- Mounting: Bracket Mount
- Application: Air Conditioning High/Low Pressure Control, Refrigeration High/Low Pressure Control, Head Pressure Control
- Pressure Rating 100 to 425 PSI
- Differential Pressure 75 PSI
- Pressure Connection 36 Inch Capillary, 1/4 Inch Sweat Tube
Documents
There are no documents available.
Specifications
- BrandJohnson Controls
- Max Operating Pressure450 PSIG
- Operating Temperature Range140
- Shipping Height2 in
- Shipping Length5 in
- Shipping Weight1 lb
- Shipping Width3 in
- UL ListedFalse
- UL RecognizedFalse
