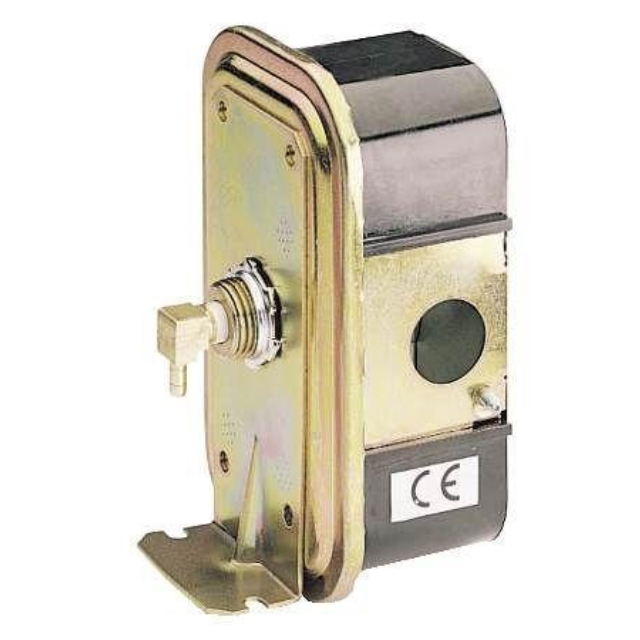

PRESSURE SWITCH SPDT .05" TO 5" WC
PRESSURE SWITCH SPDT .05" TO 5" WC
Description
Johnson Controls (Penn Controls) 1/8" FPT x 1/2" FPT, 0.05 to 5" WC Operating, 120/208/240 V/24/120 to 277 VAC, 9.8/5.65/4.9 A, 125/360 VA, SPDT, Air Media, Adjustable Setpoint, Standard Differential, Pressure Switch
Features & Benefits
- Easy-To-Read Setpoint Scale
- Versatile Mounting Option
- Small and Compact
- Durable Construction
- Sensitive Switching Differential
Specifications
- Type: Adjustable Setpoint, Standard Differential
- Operating Pressure Rating: 0.05 to 5 Inch WC
- Maximum Line Pressure Rating: 1 PSIG
- Pressure Media: Air
- Contact Configuration: SPDT
- Contact Rating: 9.8 Amp at 120 Volt, 5.65 Amp at 208 Volt, 4.9 Amp at 240 Volt, 125 Volt Amp at 24 Volt AC, 360 Volt Amp at 120 to 277 Volt AC
- Connection Type: 1/8 Inch Female Threaded x 1/2 Inch Female Threaded
- Application: Variable Volume System Control, Sensitive Pressure Setting
- Temperature Rating -40 Deg F (Ambient)
- Includes U Shape Mounting Bracket
Specifications
- BrandJohnson Controls
- UL ListedFalse
- UL RecognizedFalse
