Features & Benefits

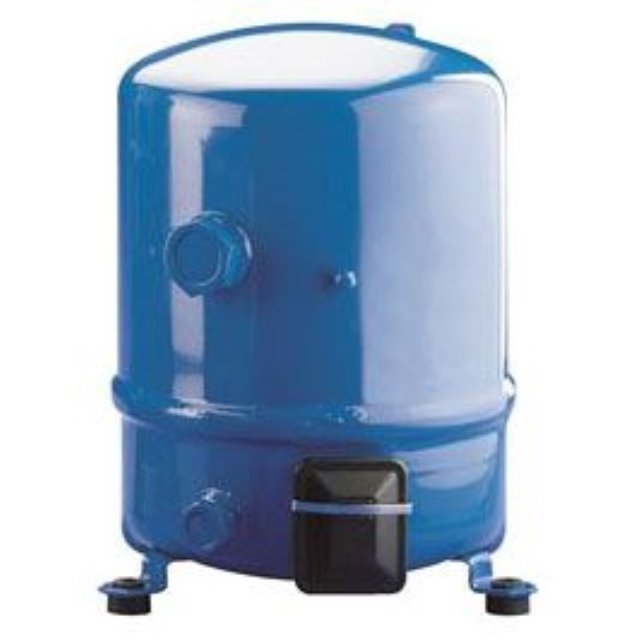

• Maneurop® MT and MTZ Series Compressors are of the Hermetic Reciprocating Type and are Designed for Medium and High Evaporating Temperature Applications
• The Positive Benefits of Internal Motor Protection, High Efficiency Circular Valve Design and High Torque Motors Provide for a Quality Installation
• MT and MTZ have the Same Mechanical and Motor Design
• MT is Charged with Mineral Oil While MTZ with Polyester Oil
• These Compressor Ranges can be Used with a Large Choice of Refrigerants According their Compatibility with the Oil
• MT and MTZ Compressors have a Large Internal Free Volume that Protects Against the Risk of Liquid Hammering When Liquid Refrigerant Enters the Compressor

Specifications

• Item: Compressor, Polyolester Oil, Hermetic, Reciprocating
• Size: 352 Millimeter Diameter x 540 Millimeter Height
• Color/Finish: Blue
• Used On Item: Air Conditioner, Refrigerant
• Applicable Standard: UL (Canada and US), UL, EAC, CE, CCC
• Refrigerant Type R-134A/R-404A/R-407A/R-407C/R-407F/R-448A/R-449A/R-452A/R-513A (POE Oil)
• Capacity 144000 BTU/Hour
• Motor Voltage Rating 400 Volt AC 50 Hertz 3-Phase/460 Volt AC 60 Hertz 3-Phase
• Current Rating 130 Amp (Locked Rotor), 36 Amp (MCC)
• Motor Control Center 36 Amp
• Connection Type 1-3/4 Inch Rotolock x 1-1/4 Inch Rotolock
• Connection with Supplied Sleeve 1-1/8 Inch ODF x 3/4 Inch ODF
• Number of Cylinders 4
• Capacity Control Fixed Speed
• Gauge Port LP Schrader
• Glass Mounting Threaded
• IP Protection Class IP54 (with Cable Gland)
• Mounting Torque 50 Newton Meter
• Number of Starts 12 per Hour
• Oil Charge 3.9 Liter
• Oil Equalization 3/8 Inch Flare SAE
• Power Connection Screw Connector #10-32 UNF x 9.5 Inch
