RED PRESSURE GAUGE R404A R410A & R22
RED PRESSURE GAUGE R404A R410A & R22
Description

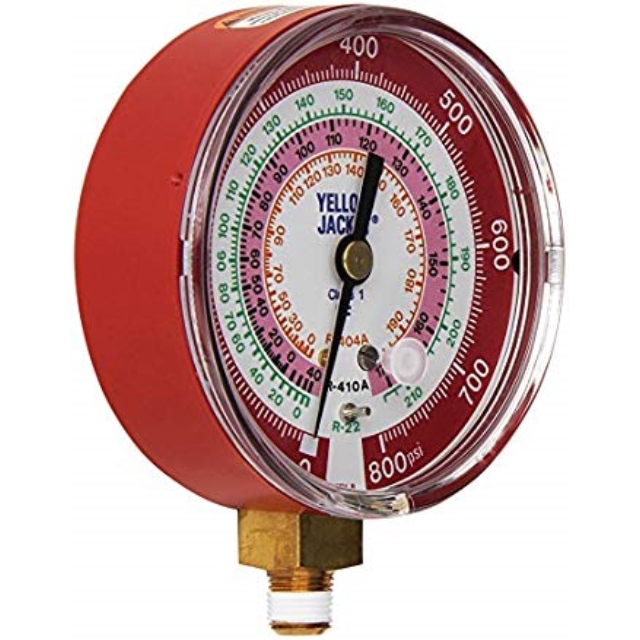

Ritchie Engineering Inc. (Yellow Jacket) 1/8" MPT, 3-1/8", 0 to 800 PSI, Red Dial, Black Pointer, Steel, Dry Manifold Pressure Gauge
Features & Benefits
- Flutterless Technology with Brass Surge Protector to Minimize Needle Pulsation
- Brass Gauge Movement
- Copper Alloy Bourdon Tube
- Color-Coded Red for Pressure and Blue for Compound
Specifications
- Minimum Pressure: 0 PSI
- Maximum Pressure: 800 PSI
- Display Type: Dial
- Enclosure Material: Steel
- End Connection: 1/8 Inch Male Threaded
- Sensor Element: Copper Alloy Bourdon Tube
- Dial Diameter: 3-1/8 Inch
- Dial Color: Red
- Pointer Material: Brass
- Pointer Color: Black
- Accuracy: 1 Percent
- Application: R-22/R-404A/R-410A Refrigerant
- Class 1
- Crystal Material Polycarbonate
Documents
Specifications
- BrandYellow Jacket
- Nominal Dial Size3-1/2" In
- RefrigerantR22, R404A, R410A
- TypePressure & Vacuum Gauges
- Accuracy1%
- Oil Filled GaugesFalse
