Features & Benefits

• Laser-welded stainless steel bellow
• Fixed or adjustable temperature setting
• High-amperage contact
• Pneumatic action provided by vapor-filled capillary or capillary with bulb sensing element
• Constant On or Off positions
• Choice of mounting brackets, adjustment ranges and cams and slotted or flatted shaft
• Standard 1/4 Inch quick-connect terminals with optional screw terminal

Specifications

• Type: Constant Differential Control
• Contact Configuration: SPST
• Connection Type: 1/4 Inch Quick-Connect
• Application: Refrigeration System
• Approval: UL (Canada and US)
Capillary Length 42 Inch; Temperature Rating 0.5 Deg F (Cold Off), 5.5 Deg F (Cold On), 16 Deg F (Normal off), 22 Deg F (Normal On), 30 Deg F (Warm On), 6 Deg F (Differential)

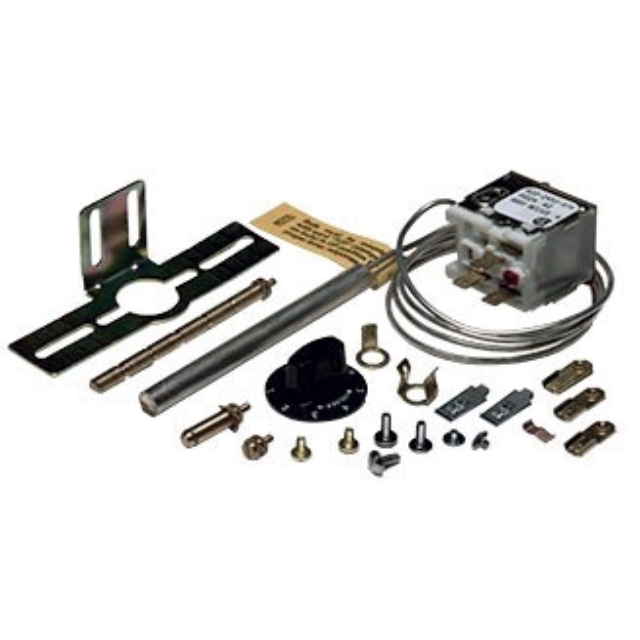

• 51SS680003 - THERMOSTAT
