REFRIGERATION CONTROL
REFRIGERATION CONTROL
Description
- Wide temperature range (-30F to 220F) (-34,4C to 104,4C)
- Wide differential adjustment (1F to 30F) (-17C to -1C)
- LCD read-out for sensor temperature, control settings, and relay status
- High Amp output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC) single stage
- EEPROM memory retains control settings during power outages
- Keypad lockout to prevent end-user alteration of settings
- 8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
- Easy 4-step set-up
- Heavy-duty relay is 1 HP rated
- Selectable F or C heating/cooling modes
- Single and two stage models
- NEMA 1 case and cover
- NEMA 4X models available
- White backlight on display
- Sensor rated IP67 for dust and water (<1m) resistance

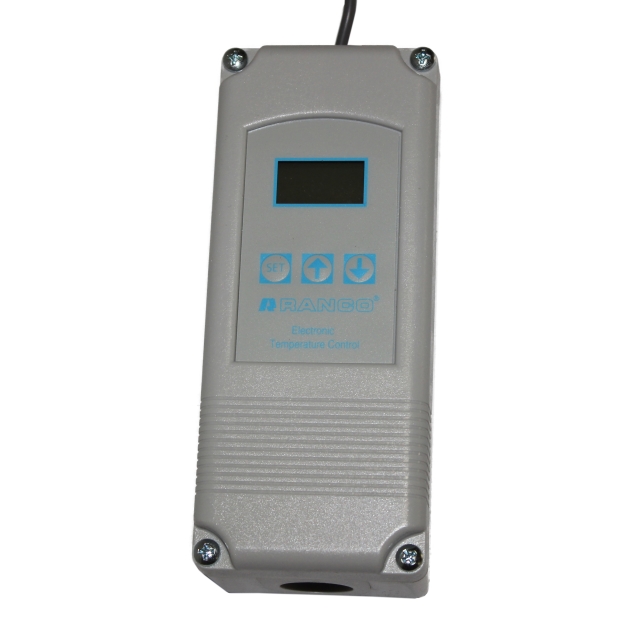

Electronic Temperature Control
- Electrical Rating: 24V AC
- Number of Stages: One
- Temperature Range: -30F to 220F (-34C to 104C)
- Enclosure: NEMA 10
- Ambient Humidity: 0% to 95% HR, non-condensing
- Differential: 1F to 30F (1C to 16C)
- Factory Part Number: ETC-112000-000
Documents
Specifications
- BrandRanco
- Differential1 - 30 DEG
- Maximum Temperature220
- Minimum Temperature30
- Shipping Height2.8 in
- Shipping Length9.1 in
- Shipping Point37406
- Shipping Weight0.85 lb
- Shipping Width3.9 in
