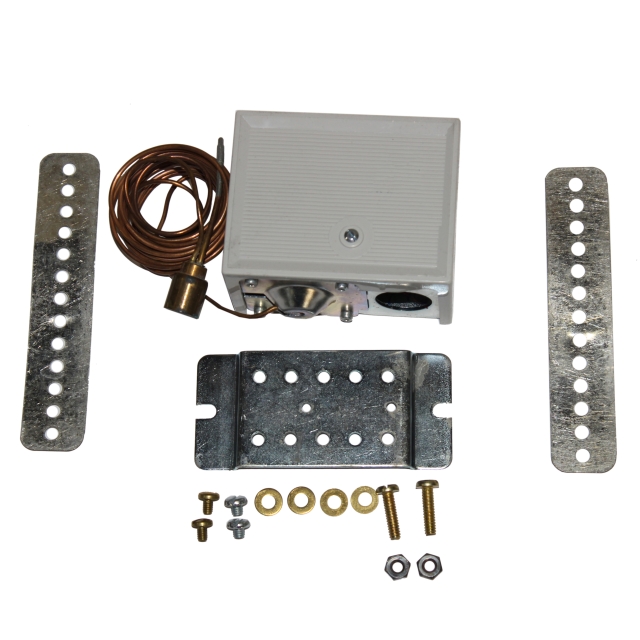

The Ranco® O Series Ice Bank Control is suitable for soft drink dispensers, drink vending machines and ice builders for thermal storage. Uses a special water-filled bulb and transmission fluid to control ice thickness in applications utilizing a refrigerated water bath with ice bank reserve capacity.

Features & Benefits

• Maximum Adjustment Accuracy with 7 Revolution Range Adjustment Screw
• Universal Mounting and Compact Design
• Laser-Welded Bellows for Extended Life
• Wide Range Adjustable Differential
• 10 Times Setting Sensitivity of Most Other Wide Range Control
• Gas-Filled, Non-Position-Sensitive Bulb
• NEMA 1 Enclosure with Non-Conductive Cover

Specifications

• Type: 96 Inch Capillary and 3/8 Inch x 6 Inch Cross Ambient Bulb
• Temperature Range: 95 to 240 Deg F
• Contact Rating: 24 Amp at 120/240 Volt AC (Resistive Load), 17 Amp at 120/240 Volt AC (Full Load), 102 Amp at 120/240 Volt AC (Locked Rotor)
• Contact Configuration: SPDT
• Enclosure: NEMA 1
• Application: Refrigerator, Kitchen, Utility Room, Laundry, Healthcare, Hospitality, Government, Education and Commercial Property Management
• Approval: UL (Canada and US)
Differential Temperature Rating 6 to 50 Deg F; Power Rating 144 Volt Amp at 24 Volt AC, 720 Volt Amp at 120/240 Volt AC, 120 Volt Amp at 241/600 Volt AC (Pilot Duty)
