REMOTE TEST STATION & KE NEUCO - SMOKE SEN. & KEY
REMOTE TEST STATION & KE NEUCO - SMOKE SEN. & KEY
Description

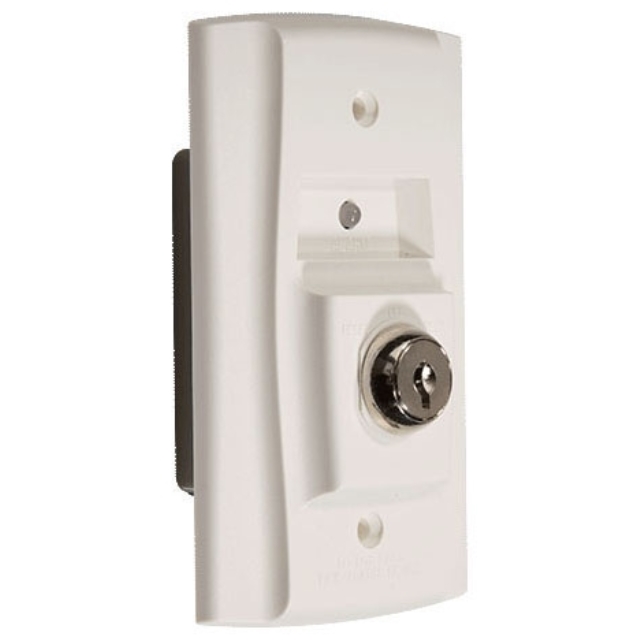

System Sensor 2.8 to 32 VDC 12 mA Red Alarm LED, 14 to 35 VDC 12 mA Green Power LED, 105 mA Total, Remote Test Station with Key for InnovairFlex Duct Smoke Detector
Specifications
- Dimensions 2.75 Inch Width x 1.8 Inch Depth x 4.6 Inch Height
- Power Requirement 14 to 35 Volt DC 12 Milliamp Maximum Power LED (Green), 2.8 to 32 Volt DC 12 Milliamp Maximum Alarm LED (Red), 105 Milliamp Maximum Total Current
- Alarm Response Time 40 Second
- Wire Gauge 14 to 18 AWG
- Temperature Rating 14 to 140 Deg F
- Relative Humidity Rating 95 Percent (Non-Condensing)
- Includes Key Lock
- Used On InnovairFlex Duct Smoke Detector
- Approval UL S2522, CSFM, FM
Documents
There are no documents available.
Specifications
- BrandSystem Sensor
- Height1.8 in
- Length4.6 in
- Operating Humidity Range0 To 95
- Operating Temperature Range14 To 140
- Shipping Height3.25 in
- Shipping Length4.5 in
- Shipping Point37406
- Shipping Weight0.03 lb
- Shipping Width6.5 in
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedFalse
- Weight0.24 lb
- Width2.75 in
