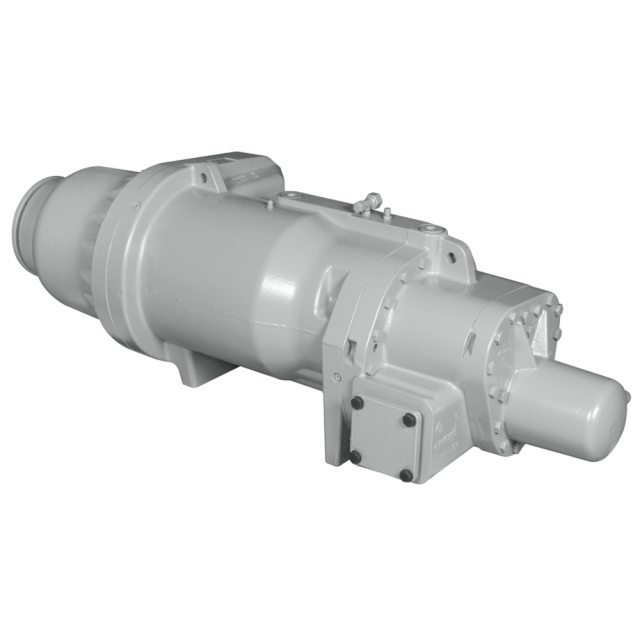

Every day around the world, Carlyle compressors are working quietly and efficiently in supermarkets, computer rooms, manufacturing plants, on board ships and over the road. Carlyle compressors consistently meet and exceed the demands of challenging environments, providing the most reliable refrigeration in the world. Carlyle compressors are more dependable and durable by design. In critical applications where extreme conditions are frequently encountered, first-year failure rates are a mere 0.29%. Carlyle compressors also provide higher performance. Twin screw models can be applied in high, medium, and low-temperature applications. With the widest operating range available for all standard refrigerants and lubricants, Carlyle has a compressor that will fit any application. Carlyle's advanced engineering superior efficiencies that can save thousands of dollars in energy costs over the lifespan of the unit.

Features & Benefits

• Easy Application, High Efficiency and Reliability
• Patented Rotor Profile Geometry Produced on State-Of-The-Art Manufacturing Processes for Unequaled Performance
• Automatic Unloaded Starting and Continuous Unloading Down to 25% with Built-In Vi Compensation at Part Load
• Dependable Rolling Element Bearing Design with Sealed Cavity for Reduced Load
• Oil Pump is Not Required
• 100% Factory Run Tested
• Integrated Check Valve for Quiet Shutdown and Flexibility to Use Multiple Compressors in Parallel
• High Efficiency, Suction Cooled Motor with integrated NTC Winding Sensor for Thermal Protection
• Pre-Engineered Oil Management Accessories and Flexible Oil Separator Selections to Match Design Requirement
• Standard Commercial Marine Parts Warranty, OEM-Backed

Specifications

• Item: Compressor, Air Cooled Volume Index
• Size: 68 Inch Length x 24 Inch Width x 23 Inch Height
• Used On Item: Air Conditioner, Refrigerant
• Applicable Standard: UL, CSA, CE, ISO 220
Motor Protection Electronic Overcurrent; Nominal Capacity 252 Ton; Refrigerant Type R-134A; Voltage Rating 400/460 Volt AC 50/60 Hertz 3-Phase; Current Rating 487/506 Amp (RLA), 623/629 Amp Wye/1900/1919 Amp Delta (LRA); Motor Power Rating 340 HP; Air Flow Rating 753 CFM at 60 Hertz; Design Level Phase 1; Temperature Rating-31 to 131 Deg F; Packaging Variations Bar Mounting Feet
