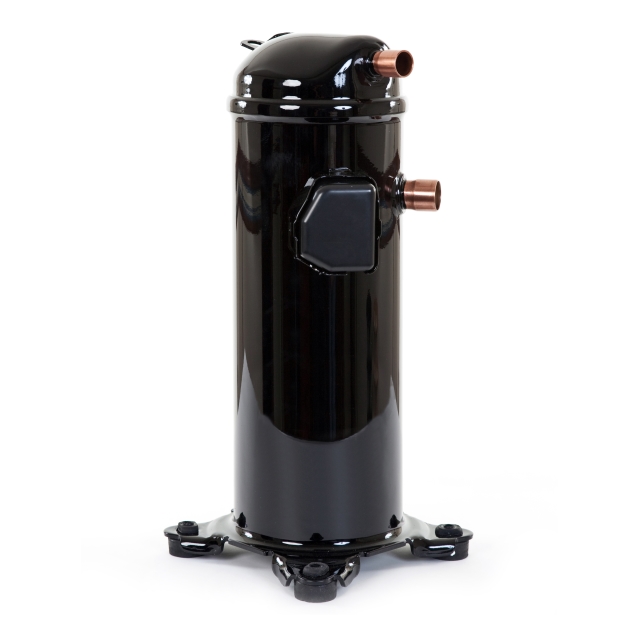

42000 BTU R407C 460-3 Phase Danfoss Scroll Compressor
42000 BTU R407C 460-3 Phase Danfoss Scroll Compressor
Description
Danfoss 42000 BTU/Hr, 380 to 400 VAC 50 Hz, 460 VAC 60 Hz 3-Phase, 6.4 A, R-407C, Internal Overload/Electronic Overcurrent Protection, Fixed Speed, Scroll Compressor for Air Conditioner
Specifications
- Item: Compressor, Fixed Speed
- Size: 184 Millimeter Diameter x 239 Millimeter Length x 239 Millimeter Width x 455 Millimeter Height
- Color/Finish: Black
- Used On Item: Air Conditioner
- Applicable Standard: UL, CE Motor Protection Internal Overload/Electronic Overcurrent; Nominal Capacity 58000 BTU/Hour; Refrigerant Type R-22; Voltage Rating 500 Volt AC 50 Hertz, 575 Volt AC 60 Hertz 3-Phase; Current Rating 7.4 Amp (RLA), 53 Amp (LRA), 11.5 Amp (MCC); Suction Connection 7/8 Inch ODF Soldered; Discharge Connection 1/2 Inch ODF Soldered; Speed Rating 2900 RPM at 50 Hertz, 3500 RPM at 60 Hertz; Viscosity 32 Centipoise; Enclosure Rating IP22; Connection Type Brazed, Spade Terminal; Application Residential
Documents
Specifications
- BrandDanfoss
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)460
- RefrigerantR407C
- Variety TypeScroll
- Compressor Capacity42000 btu
- Motor Phase3
- Shipping Weight64.31985 lb
