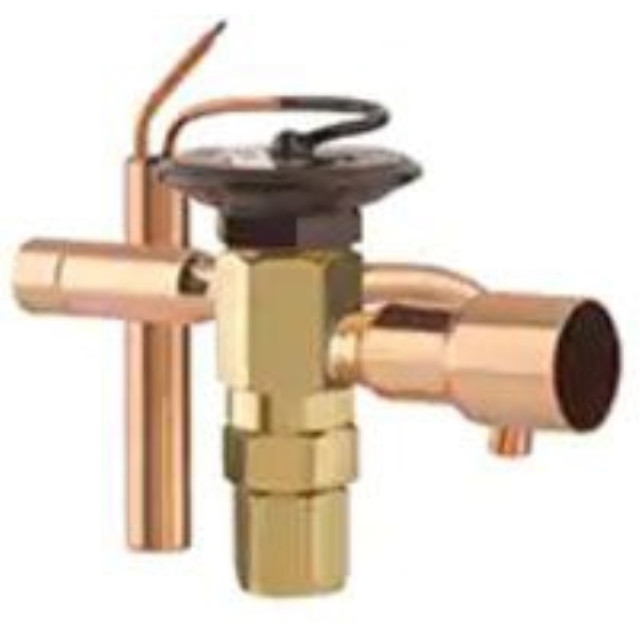

The Parker C-EC-SC Series balance ported thermostatic expansion valves have a brass bar stock body with flare or sweat connections, adjustable superheat, long lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. The balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation. Also available is the Parker C Series Interchangeable valve. These C Valves are supplied in two components, the thermostatic element and the valve body. The interchangeable nature of this part of the C family makes it ideal for reducing inventory, while increasing valve options.

Features & Benefits

• Balance Port Design Provide Perfect Pin and Port Alignment and Prevent Pressure Drop Across the Valve from influencing Valve Operation

Specifications

• Type: Automatic, Balanced Port, Adjustable Superheat, 90 Degree
• Nominal Size: 1/4 Inch x 1/2 Inch
• End Connection: SAE Flare x SAE Flare
• Body Material: Brass Bar Stock
• Temperature Rating: -40 to 60 Deg F
• Pressure Rating: 450 PSI
• Inclusions/Features: 1/4 Inch SAE Flare External Equalizer, 100 Mesh Removable Strainer
• Application: Small Refrigerant System, Slush Machine, Air Conditioner Unit, Freezer, Walk-In Cooler, Refrigerant Case, Rail and Transport Refrigerant
Capillary Tube Length 60 Inch; Refrigerant Type R-22; Refrigerant Color Green; Capacity 1/2 Ton; Charge Code Maximum Operating Pressure, Pressure Limiting
