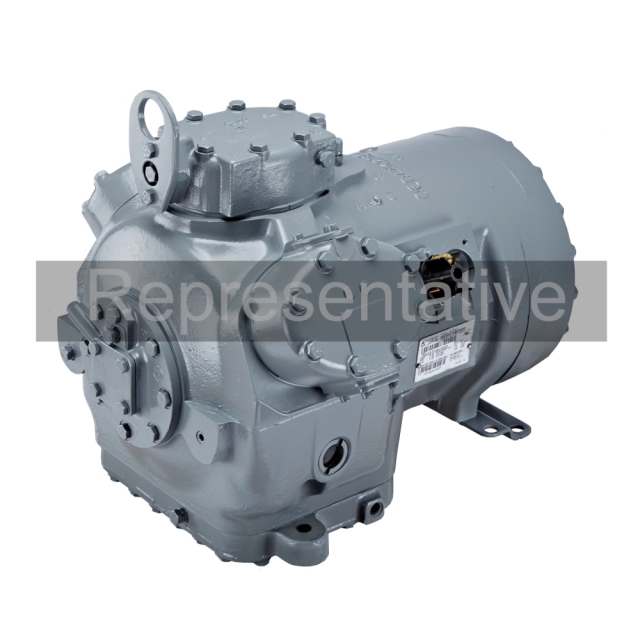

Remanufactured Service Compressor 208/230V (60Hz) Medium Temperature-Refrigeration Duty
Remanufactured Service Compressor 208/230V (60Hz) Medium Temperature-Refrigeration Duty
Description
06DM3166CC3250
06DM = Service Compressor - Replacement for new 06DA, DM without unloading
3 = Motor Size
16 = Displacement in CFM at 1750 RPM
6 = Service Compressor, Remanufactured
C = Motor End Suction Service Valve, 2-Bolt, 90D
C = With Internal Thermostat and Without External Overloads
32 = 208/230-3-60
5 = No Oil
0 = Single Pack Base Unit Unpackages
06DM = Service Compressor - Replacement for new 06DA, DM without unloading
3 = Motor Size
16 = Displacement in CFM at 1750 RPM
6 = Service Compressor, Remanufactured
C = Motor End Suction Service Valve, 2-Bolt, 90D
C = With Internal Thermostat and Without External Overloads
32 = 208/230-3-60
5 = No Oil
0 = Single Pack Base Unit Unpackages
Standard Features
- High-flow, automatically reversible oil pump provides positive-displacement oil lubrication.
- Crankcase venting system equalizes pressure during startup and assures oil return to sump.
- Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts.
- Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency.
- High-efficiency valves provide increased refrigerant flow and lower pressure drops.
- Electronic oil-pressure switch.
Specifications
- BrandCarlyle
- ApplicationMedium Temperature, Refrigeration Duty
- CFM Displacement16
- Cylinders4
- DesignRemanufactured Service
- HP5
- RefrigerantR134A, R22, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R500, R502, R507, R513A
- Suction Line Size1-1/8"
- Variety Type06D/6D - Reciprocating
- Voltage208/230
- Capacity (Water Cooled)77.9 btu
- Dry Weight182 lbs
- Frequency60Hz
- LRA100
- Max RLA17.3
- Max Watts6250
- Motor Phase3
- MTA27
- Oil Charge5 pints
- SC0 °F
- SCT (Air Cooled)130 °F
- Shipping Height21 in
- Shipping Length25 in
- Shipping Point37406
- Shipping Weight283 lb
- Shipping Width20 in
- SST (Air Cooled)45 °F
- SST (Water Cooled)40 °F
- Suction Temperature Range0 - 50
