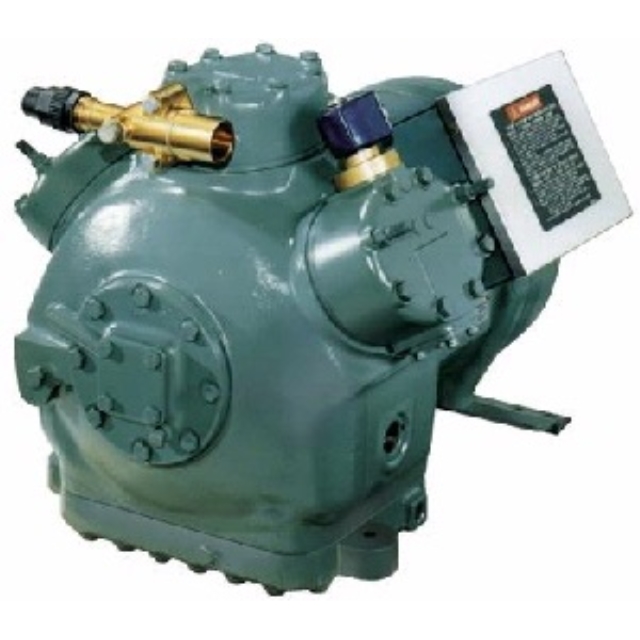

Remanufactured Service Compressor 208/230V (60Hz) AC Duty
Remanufactured Service Compressor 208/230V (60Hz) AC Duty
Description
06DX8246AC1200
06DX = Service Compressor. Replacement for new 06DB,C,D, and E with hot gas (bypass) unloading. Compressor has 1-stage of bypass unloading 8 = Motor Size
24 = Displacement in CFM at 1750 RPM
6 = Service Compressor, Remanufactured
A = Motor End Suction Service Valve, 2-Bolt, 30D
C = With Internal Thermostat and Without External Overloads
12 = 208/230-3-60
0 = 1st Generation Suction Cut-Off Unloading
0 = Single Pack Base Unit Unpackages
06DX = Service Compressor. Replacement for new 06DB,C,D, and E with hot gas (bypass) unloading. Compressor has 1-stage of bypass unloading 8 = Motor Size
24 = Displacement in CFM at 1750 RPM
6 = Service Compressor, Remanufactured
A = Motor End Suction Service Valve, 2-Bolt, 30D
C = With Internal Thermostat and Without External Overloads
12 = 208/230-3-60
0 = 1st Generation Suction Cut-Off Unloading
0 = Single Pack Base Unit Unpackages
Standard Features
- High-flow, automatically reversible oil pump provides positive-displacement oil lubrication.
- Crankcase venting system equalizes pressure during startup and assures oil return to sump.
- Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts.
- Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency.
- High-efficiency valves provide increased refrigerant flow and lower pressure drops.
- Electronic oil-pressure switch.
Specifications
- BrandCarlyle
- ApplicationAC Duty
- CFM Displacement24
- Cylinders6
- DesignRemanufactured Service
- HP7.5
- RefrigerantR134A, R22, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R500, R502, R507, R513A
- Unloading TypeHot Gas Bypass
- Variety Type06D/6D - Reciprocating
- Voltage208/230
- Capacity (Air Cooled)105.8 btu
- Capacity (Water Cooled)117.3 btu
- Dry Weight275 lbs
- Frequency60Hz
- LRA170
- Max RLA43.9
- Max Watts14,100
- Motor Phase3
- MTA61.5
- Oil Charge10 pints
- SC0 °F
- SCT (Air Cooled)130 °F
- Shipping Height22.5 in
- Shipping Length26.5 in
- Shipping Point37406
- Shipping Weight302 lb
- Shipping Width20.5 in
- SST (Air Cooled)45 °F
- SST (Water Cooled)40 °F
- Suction Temperature Range0 - 50
