18000 BTU R22-R407C 208/230-1 Phase Copeland Scroll Compressor
18000 BTU R22-R407C 208/230-1 Phase Copeland Scroll Compressor
Description

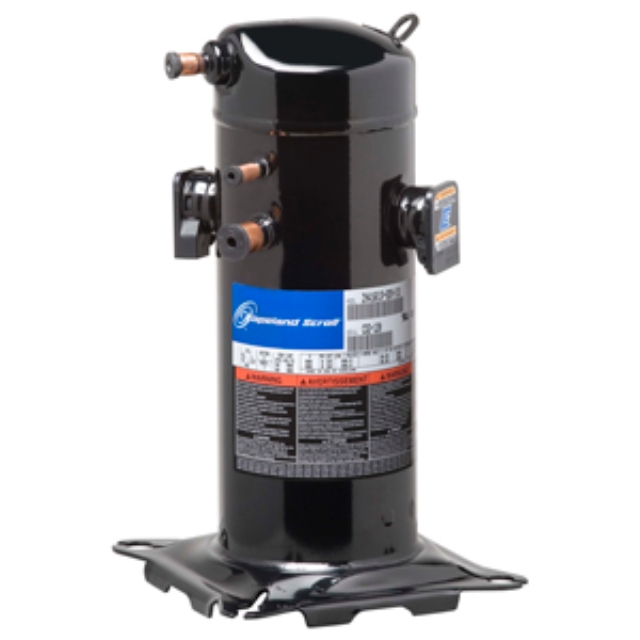

Emerson Electric Co. (Copeland) Scroll™ 5.5" x 15.3", 3/4" ODF Soldered Suction, 1/2" ODF Soldered Discharge, 200 VAC 50 Hz 1-Phase, 208 to 230 VAC 60 Hz, 10.7 RLA, 18000 BTU/Hr, R-22/R-407C/R-134A, Scroll Compressor with Internal Inherent Protection for Air Conditioner
Specifications
- Size: 5.5 Inch Diameter x 15.3 Inch Height
- Used On Item: Air Conditioner
- Connection Size 3/4 Inch ODF Soldered (Suction), 1/2 Inch ODF Soldered (Discharge)
- Refrigerant Type R-22/R-407C/R-134A
- Nominal Capacity 18000 BTU/Hour
- Voltage Rating 200 Volt AC 50 Hertz, 208 to 230 Volt AC 60 Hertz 1-Phase
- Current Rating 10.7 Amp (RLA)
- Motor Type 30 Microfarad at 370 Volt 1-Phase PSC
- Cooling Efficiency 9.85 EER
- Includes Internal Inherent Protection
Specifications
- BrandCopeland
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR22, R407C
- Variety TypeScroll
- Compressor Capacity18000 btu
- Frequency60Hz
- Motor Phase1
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Point37406
- Shipping Weight53 lb
- Shipping Width0.1 in
