Danfoss

SIGHT GLASS

SKU:014-0144
Danfoss

SIGHT GLASS

SKU:014-0144

    Description

    Danfoss 1/2" x 1/2", ODF Soldered x ODF Soldered, 500 PSIG, Brass, N-Type, Low Pressure, Cooling Sight Glasses

    Features & Benefits

    • Provides Fast and Easy Indication of High System Moisture Content Lack of Subcooling or Low System Charge Liquid Level in Receiver
    • Oil Level in Compressor
    • Type ā€œNā€ Provides Optimal Moisture Indication for Refrigerant
    • All Indicators are Dirt Resistant
    • Available in Both Inline and Vessel Mount Versions
    • Hermetically Sealed, Tempered Glass for Easy Viewing

    Specifications

    • Type: N-Type, Low Pressure
    • End Connection: 1/2 Inch ODF Soldered x 1/2 Inch ODF Soldered

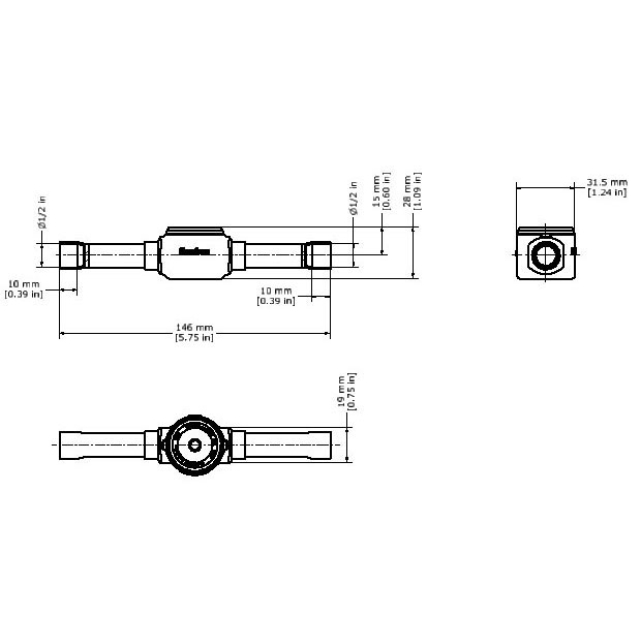

    • End to End Distance: 5.748 Inch
    • Body Material: Brass
    • Temperature Rating: -58 to 175 Deg F
    • Pressure Rating: 500 PSIG
    • Application: Indicate the Condition of the Refrigerant in the Liquid Line
    • Applicable Standard: UL (Canada and US), EAC
    • Connection Material Copper

    Documents

    Specifications

    • BrandDanfoss
    • ConnectionODF x ODF Sweat
    • Size1/2"
    • TypeSGN 12S
    • Connection Size1/2
    • Length4.7" in
    • UL ListedTrue
    • UL RecognizedFalse
    • Weight0.25 lb
