SOLENOID VALVE
SOLENOID VALVE
Description

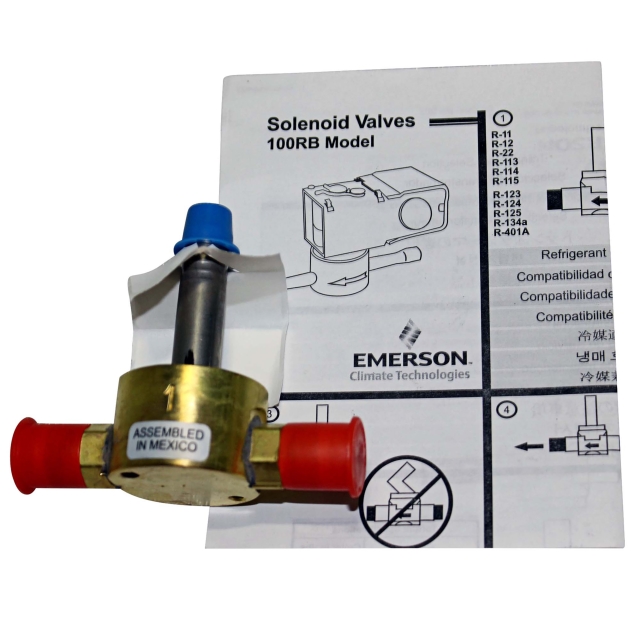

Solenoid valve
The 100RB is a direct-acting, 2-way, normally closed valve. 100 RB valves are used for liquid or discharge gas refrigerant service.
Mounting enclosing tube more than 90 off vertical up position is not recommended.
- One coil fits all valve sizes
- Extended ends for easy installation (standard)
- Long-life molded coils
- PTFE O-ring for superior external sealing
The 100RB is a direct-acting, 2-way, normally closed valve. 100 RB valves are used for liquid or discharge gas refrigerant service.
Mounting enclosing tube more than 90 off vertical up position is not recommended.
Replacement for
Specifications
- BrandEmerson
- ApplicationDischarge Gas, Liquid Line, Suction Line
- Connection Size3/8"
- Connection TypeFlare
- Port Size1/8"
- PositionTwo Way, Normally Closed
- RefrigerantR22
- Height2.83" in
- Length3.5 in
- Maximum Fluid Temperature250 °F
- Maximum Operating Pressure Drop2 psi
- Maximum Working Pressure500 PSIG
- MOPD300 psig
- Nominal Liquid Capacity R-22 (Tons)1.3
- Shipping Height6.6929 in
- Shipping Length5.3543 in
- Shipping Weight0.65 lb
- Shipping Width3.1496 in
- UL ListedTrue
- Weight0.55 lb
- Width1.5 in
