SOLENOID VALVE
SOLENOID VALVE
Description

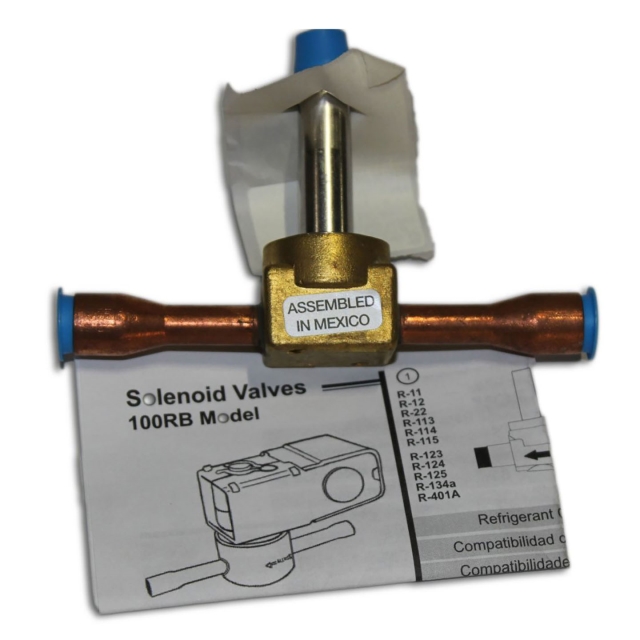

Solenoid valve
The 100RB is a direct-acting, 2-way, normally closed valve. 100 RB valves are used for liquid or discharge gas refrigerant service.
Mounting enclosing tube more than 90 off vertical up position is not recommended.
- One coil fits all valve sizes
- Extended ends for easy installation (standard)
- Long-life molded coils
- PTFE O-ring for superior external sealing
The 100RB is a direct-acting, 2-way, normally closed valve. 100 RB valves are used for liquid or discharge gas refrigerant service.
Mounting enclosing tube more than 90 off vertical up position is not recommended.
Documents
There are no documents available.
Specifications
- BrandFactory Authorized Part
- ApplicationDischarge Gas, Liquid Line, Suction Line
- Connection Size1/2"
- Connection TypeSweat
- Port Size1/8"
- PositionTwo Way, Normally Closed
- RefrigerantR22
- Height2.83" in
- Length1.125 in
- Maximum Fluid Temperature250 °F
- Maximum Operating Pressure Drop2 psi
- Maximum Working Pressure500 PSIG
- MOPD300 psig
- Nominal Liquid Capacity R-22 (Tons)1.3
- Shipping Height2.2 in
- Shipping Length6.5 in
- Shipping Weight0.4 lb
- Shipping Width4.9 in
- UL ListedTrue
- Weight29.9375 lb
- Width5 in
