SOLENOID VALVE
SOLENOID VALVE
Description

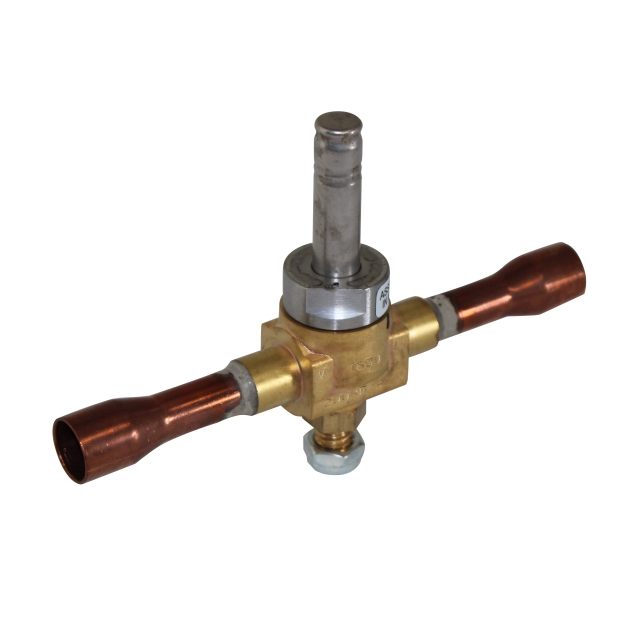

The 200RB is a pilot-operated, 2-way, normally closed valve.
200RB valves are used for liquid, discharge, or suction gas refrigerant service
- One coil fits all valve sizes
- Extended ends for easy installation (standard)
- Long-life molded coils
- PTFE O-ring for superior external sealing
200RB valves are used for liquid, discharge, or suction gas refrigerant service
- Available in 7 orifice sizes
- Manual stem or mounting stud
- Bi-Flow operation-conversion either factory assembled or with kit (except 200RB 7 & 9)
Specifications
- BrandEmerson
- ApplicationDischarge Gas, Liquid Line, Suction Line
- Connection Size5/8"
- Connection TypeCopper Extended Ends
- Port Size1/4"
- PositionTwo Way, Normally Closed
- RefrigerantR22
- Stem TypeMounting Stud
- BiflowTrue
- Height3.41" in
- Maximum Fluid Temperature250 °F
- Maximum Operating Pressure Drop2 psi
- Maximum Working Pressure500 PSIG
- MOPD300 psig
- Nominal Liquid Capacity R-22 (Tons)8
- Shipping Height2.2047 in
- Shipping Length6.2992 in
- Shipping Weight0.35 lb
- Shipping Width4.7244 in
- UL ListedTrue
- Weight0.74 lb
