Mason

Spring Hangers, 113lbs/in Mnt Constant 1.00" Deflection Yellow

SKUHSX-130
Mason

Spring Hangers, 113lbs/in Mnt Constant 1.00" Deflection Yellow

SKUHSX-130

    Description

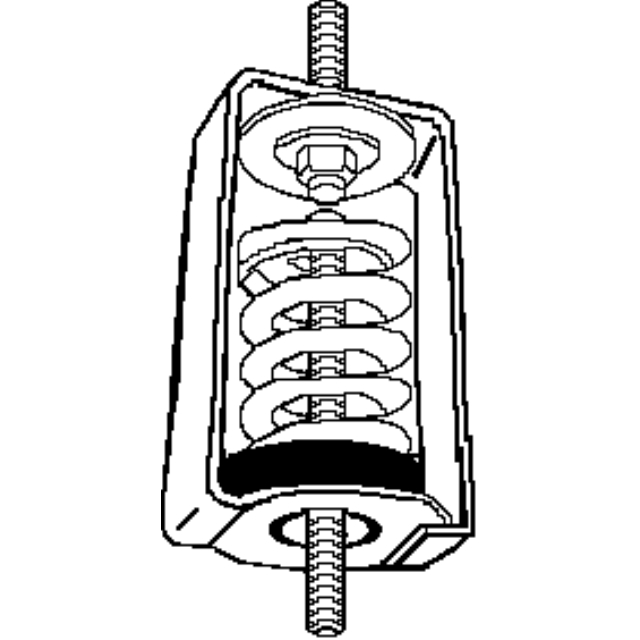

    Mason Industries Inc. 2-7/8" x 2-1/2" x 4-1/4", 1" Deflection, 130 Lb Capacity, Purple, Deflection Spring Hanger

    Features & Benefits

    • We reduced these problems by writing specifications and manufacturing hangers with the hole in the bottom of the hanger box as large as the I.D. of the spring
    • The HS Spring Hangers evolved using our standard A, B and C Springs and seating them in LDS cups with projecting bushings to line the hole in the lower end of the box
    • A, B and C Springs are designed for horizontal stiffness so they do not fall over or buckle
    • Centering the spring in the acoustical cup made steel-to-steel contact of the rod and the top steel cup unimportant and put the rubber in the right location on the leaving end of the spring

    Specifications

    • Item: Deflection Spring Hanger
    • Overall Dimension 2-7/8 Inch Width x 2-1/2 Inch Depth x 4-1/4 Inch Height
    • Deflection Rating 1 Inch
    • Capacity 130 Pound
    • Spring Constant 130 Inch-Pound
    • Maximum Rod Diameter 3/8 Inch
    • Color Purple

    Documents

    There are no documents available.

    Specifications

    • BrandMason
    • AvailabilityAvailable for Delivery
    • Warehouse AvailabilityWESE
    • Hangers TypeSpring Hangers

    Equipment Parts List

    There is no data available for this product
