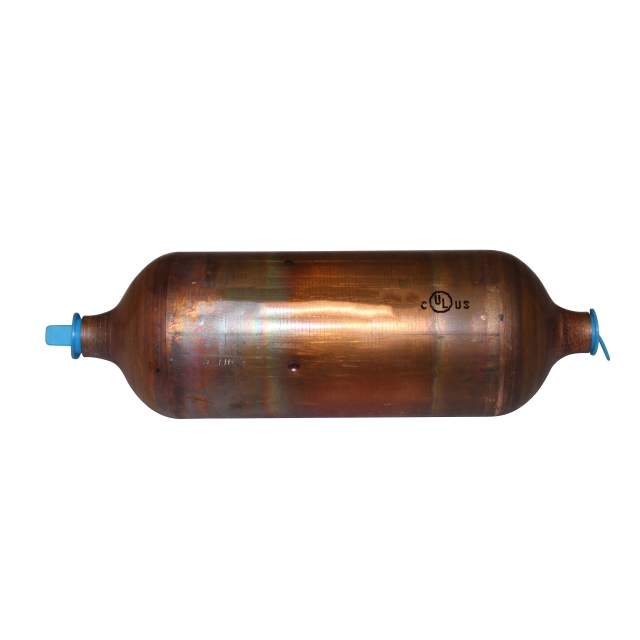

3/8" Sweat (ODF) Liquid Line Filter Drier ,16 CU IN
3/8" Sweat (ODF) Liquid Line Filter Drier ,16 CU IN
Description
- All copper construction for extreme corrosion resistance.
- 100% molecular sieve solid core drier.
- For use with CFC, HCFC and HFC refrigerants
The CU series is a high capacity spun copper solid core Filter Drier ideal for superior corrosion resistance in ocean going vessels and coastal applications.
Specifications
- BrandEmerson
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Effective Volume Desiccant16
- Line TypeLiquid
- Nominal Connection Size3/8" in
- RefrigerantCFC, HCFC, HFC
- ApplicationThe CU Series Is A High Capacity Spun Copper Solid Core Filter Drier Ideal For Superior Corrosion Resistance In Ocean Goingvessels And Coastal Applications.
- Bursting Pressure500 PSIG
- Diameter2 in
- Height2 in
- Length6.06 in
- Maximum Working Pressure500 PSIG
- Refrigerant Charge Amount (Lbs)0
- Shell Material & FinishCopper
- Shipping Height2.8 in
- Shipping Length7.1 in
- Shipping Point37406
- Shipping Weight0.75 lb
- Shipping Width2.9 in
- TypeLiquid Line
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Width2 in
