The A-AS protects the compressor from liquid slugging and is used with CFC, HCFC, and HFC refrigerants. It is available for systems through 28 tons nominal capacity.

Features & Benefits

• Fusible Plug on Larger Diameter Units
• Solid Copper Connection
• Inlet Deflector Directs Refrigerant Flow to Prevent Internal Splashing and AID in the Collection of Refrigerant Oil

Specifications

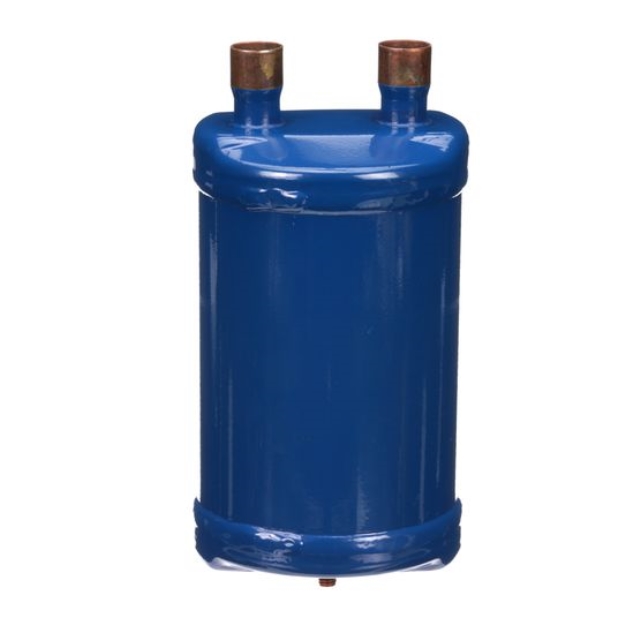

• Item: Suction Accumulator
• Size: 3 Inch Diameter x 10 Inch Height
• Color/Finish: Corrosion Resistant Epoxy Powder Painted
• Used On Item: Refrigerant
• Applicable Standard: UL/CUL, CRN
End Connection 5/8 Inch ODF Soldered x 5/8 Inch ODF Soldered; Fitting Separation 1.63 Inch; Maximum Working Pressure Rating 450 PSIG; Fusible Plug Temperature Rating 430 Deg F
