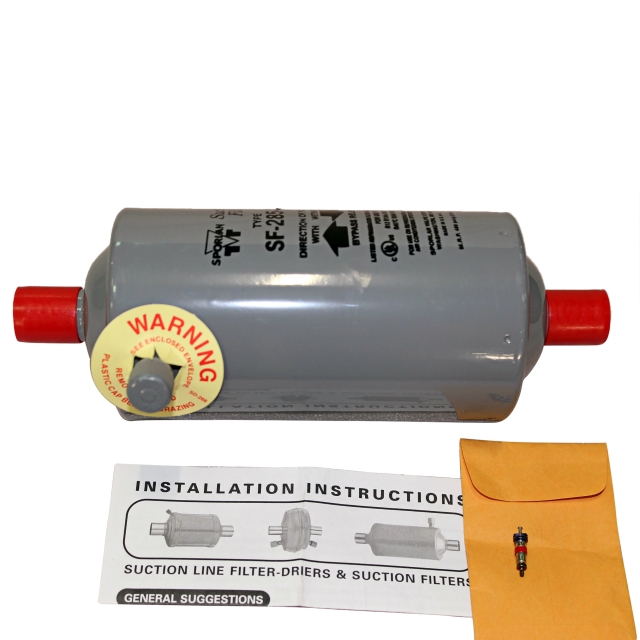

5/8" Sweat (ODF) Suction Line Filter Drier ,28 CU IN
5/8" Sweat (ODF) Suction Line Filter Drier ,28 CU IN
Description
Parker Hannifin Corp. (Sporlan) CATCH-ALL® 3" x 8.34", 5/8" x 5/8", ODF Soldered x ODF Soldered, Refrigerant Type R22/R134A/R407C/R404A/R507/R-410A, 28 Sq Inch, 400 PSI, Suction Line Filter with Inlet Pressure Tap, Bypass Relief for Refrigerant/Air Conditioner
Features & Benefits
- Protects the Compressor From Dirt
- A Relief Device Opens if the Filter Plug
- Suitable for Use with All Brazing Alloy
- Maximum Corrosion Resistance
- Full Flow Design for Low Pressure Drop
Specifications
- Item: Suction Line Filter
- Size: 3 Inch Diameter x 8.93 Inch Length
- Used On Item: Air Conditioner
- Applicable Standard: UL, UL (Canada), UL (Canada and US) End Connection 7/8 Inch ODF Soldered x 7/8 Inch ODF Soldered; Refrigerant Type R-22/R-134A/R-407C/R-404A/R-507/R-410A; Socket Depth 0.75 Inch; Filter Area 28 Square Inch; Pressure Rating 400 PSI; Temperature Rating -40 to 40 Deg F; Includes Inlet Pressure Tap, Bypass Relief
Specifications
- BrandSporlan
- BurnoutNo
- Connection TypeSweat (ODF)
- Connection TypeODF Solder
- Effective Volume Desiccant28
- Inlet Connection Size5/8 in
- Line TypeSuction
- Nominal Connection Size5/8" in
- Outlet Connection Size5/8 in
- RefrigerantR12, R134A, R407C
- Connection Size5/8
- Length8.34 in
- Shipping Height3.3 in
- Shipping Length11.5 in
- Shipping Point37406
- Shipping Weight2.25 lb
- Shipping Width3.4 in
- Socket Depth0.62
- TypeWith Access Valve
- UL ListedFalse
- UL RecognizedFalse
