Sweat (ODF) Suction Line Filter Drier ,96 CU IN
Sweat (ODF) Suction Line Filter Drier ,96 CU IN
Description

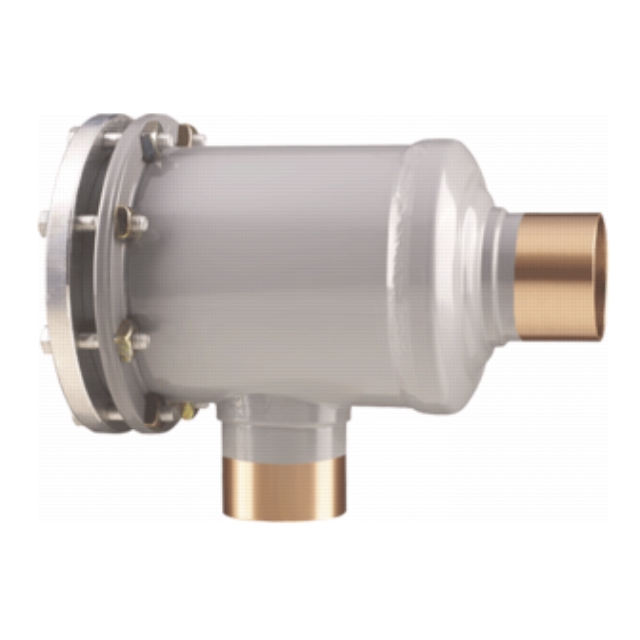

Parker Hannifin Corp. (Sporlan) 6" x 15.14", 2-1/8" x 2-1/8", ODF Soldered x ODF Soldered, 776 Sq Inch, 500 PSI, Suction Line Replaceable Core Filter Drier for Air Conditioning System
Features & Benefits
- High Flow Capacity
- Corrosion Resistant Coating on Shell
- Can be Installed with Flow in Either Direction, for Easy Installation on Compact Units
- Can be Used with Desiccant Cores for Clean-Up After Burnout
- Access Valve Supplied for Pressure Drop Measurement or Charging
Specifications
- Item: Suction Line Replaceable Core Filter Drier
- Size: 6 Inch Diameter x 15.12 Inch Height
- Used On Item: Air Conditioning System
- Applicable Standard: UL (Canada and US) End Connection 3-1/8 Inch ODF Soldered x 3-1/8 Inch ODF Soldered; Pressure Rating 500 PSI; Filter Area 776 Square Inch; Filter Element Type RPE-48-BD; Number of Cores 2; Temperature Rating -40 to 40 Deg F
Specifications
- BrandSporlan
- BurnoutNo
- Connection TypeSweat (ODF)
- Connection TypeODF Solder
- Effective Volume Desiccant96
- Line TypeSuction
- RefrigerantR12, R22, R134A, R404A, R407C
- Connection Size2 1/8
- Height9 in
- Length14.96 in
- Shipping Height9 in
- Shipping Length18 in
- Shipping Weight10 lb
- Shipping Width10 in
- TypeRefrigerant
- UL ListedFalse
- UL RecognizedFalse
- Weight12.42 lb
- Width8 in
