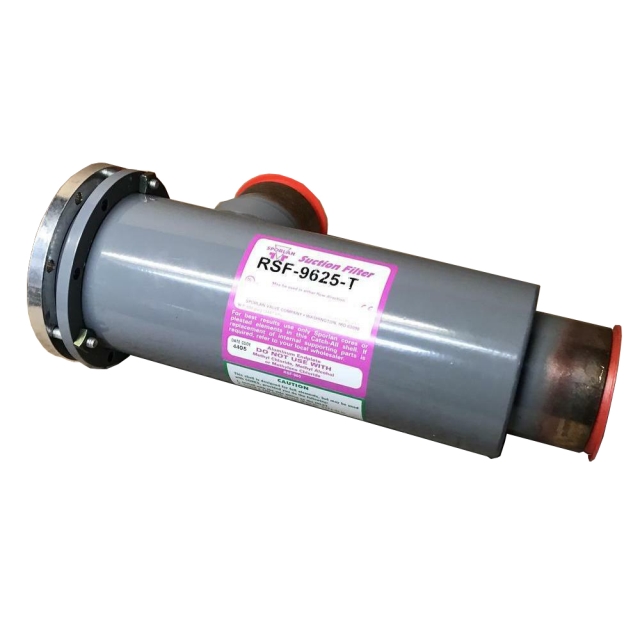

Sweat (ODF) Suction Line Filter Drier ,96 CU IN
Sweat (ODF) Suction Line Filter Drier ,96 CU IN
Description
Parker Hannifin Corp. (Sporlan) 6" x 15.12", 3-1/8" x 3-1/8", ODF Soldered x ODF Soldered, 776 Sq Inch, 500 PSI, Suction Line Replaceable Core Filter Drier for Air Conditioning System
Features & Benefits
- Low Pressure Drop
Specifications
- Type: Oil
- End Connection: ODS x ODS
- Overall Length: 534 Millimeter
- Application: HCFC and HFC Refrigerant, Multi-Compressor, Rack and Remote, Condensing Unit
- Applicable Standard: CE Overall Dimension 219 Millimeter Diameter; Oil Return Connection 3/8 Inch SAE Flare; Mounting Details 3 x 14 Millimeter Diameter Slot; Operating Pressure Rating 0 to 31 Bar; Operating Temperature Rating -10 to 130 Deg C; Material Carbon Steel (Shell/End Cap Connection), Stainless Steel (Oil Float), Needle Valve Seat (Steel)
Specifications
- BrandSporlan
- BurnoutNo
- Connection TypeSweat (ODF)
- Connection TypeODF Solder
- Effective Volume Desiccant96
- Line TypeSuction
- RefrigerantR12, R22, R134A, R404A, R407C
- Connection Size3 1/8
- Length15.12 in
- Shipping Height9 in
- Shipping Length18 in
- Shipping Weight15 lb
- Shipping Width10 in
- UL ListedFalse
- UL RecognizedFalse
