Sporlan

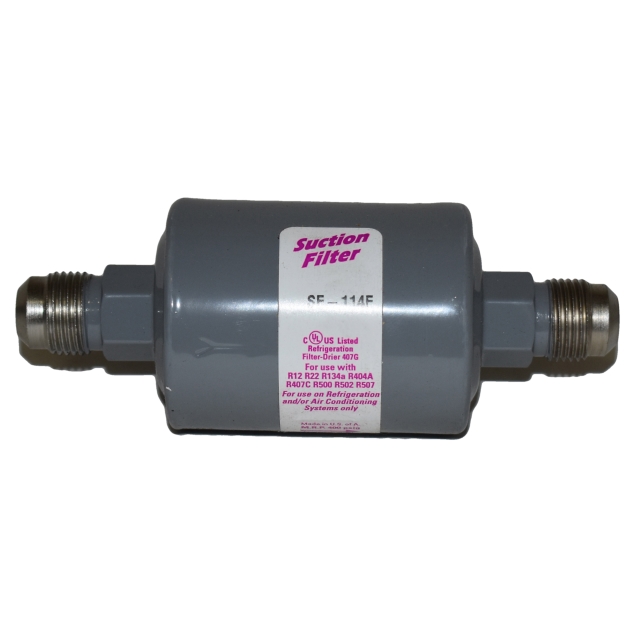

Flare (SAE) Suction Line Filter Drier ,11 CU IN

SKU:SF-114-F
Sporlan

Flare (SAE) Suction Line Filter Drier ,11 CU IN

SKU:SF-114-F

    Description

    Parker Hannifin Corp. (Sporlan) CATCH-ALLĀ® 2" x 5.25", 1/2" x 1/2", SAE Flare x SAE Flare, Refrigerant Type R22/R134a/R407C/R404A/R507/R-410A, 11 Sq Inch, 400 PSI, Suction Line Filter for Refrigerant/Air Conditioner

    Features & Benefits

    • Protects the Compressor From Dirt
    • A Relief Device Opens if the Filter Plug
    • Suitable for Use with All Brazing Alloy
    • Maximum Corrosion Resistance
    • Full Flow Design for Low Pressure Drop

    Specifications

    • Item: Suction Line Filter
    • Size: 2 Inch Diameter x 5.56 Inch Length
    • Used On Item: Air Conditioner
    • Applicable Standard: UL, UL (Canada), UL (Canada and US)
    • End Connection 5/8 Inch SAE Flare x 5/8 Inch SAE Flare; Refrigerant Type R-22/R-134A/R-407C/R-404A/R-507/R-410A; Filter Area 11 Square Inch; Pressure Rating 400 PSI; Temperature Rating -40 to 40 Deg F

    Specifications

    • BrandSporlan
    • BurnoutNo
    • Connection TypeFlare (SAE)
    • Connection TypeSAE Flare
    • Effective Volume Desiccant11
    • Inlet Connection Size1/2 in
    • Line TypeSuction
    • Outlet Connection Size1/2 in
    • RefrigerantR12, R22, R134A, R404A, R407C
    • Connection Size1/2
    • Length5.25 in
    • Shipping Height3 in
    • Shipping Length6 in
    • Shipping Weight1 lb
    • Shipping Width3 in
    • Socket Depth0.5
    • TypeWithout Access Valve
    • UL ListedFalse
    • UL RecognizedFalse
    • Weight0.68 lb
