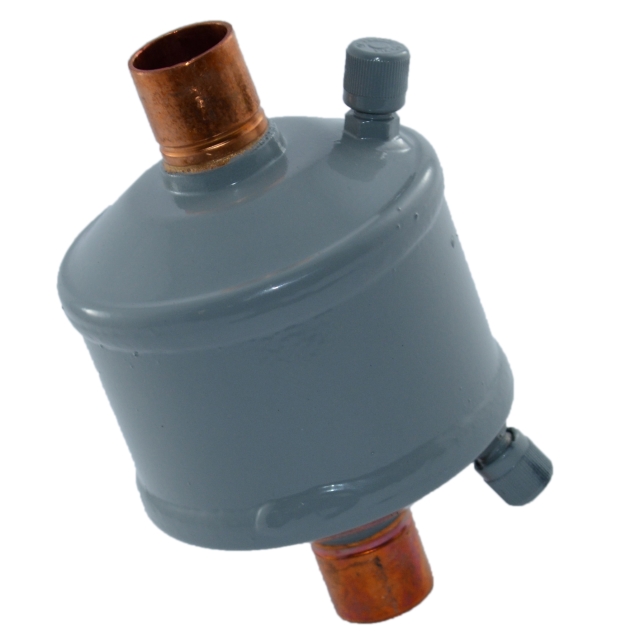

7/8" Sweat (ODF) Suction Line Filter Drier ,13 CU IN
7/8" Sweat (ODF) Suction Line Filter Drier ,13 CU IN
Description
- Corrosion Resistant Epoxy Powder Paint Finish
- Solid Copper Fittings
- Dual Access Valves
Totaline standard compacted bead suction filter drier for use after burnout or when contaminant removal. For use with CFC, CHFC, & HFC refrigerants. Suction line filter drier used for moisture, acid and contaminant removal.
Documents
There are no documents available.
Specifications
- BrandTotaline
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Core Material & FinishCompacted Bead
- Effective Volume Desiccant13
- Line TypeSuction
- Nominal Connection Size7/8" in
- RefrigerantCFC, CHFC, HFC
- Application• Totaline Standard Compacted Bead Suction Filterdrier For Use After Burnout Or When Contaminantremoval.• For Use With CFC, CHFC, & HFC Refrigerants.• Suction Line Filter Drier Used For Moisture, Acidand Contaminant Removal.
- Cutout Length3.37 in
- Diameter3.6875 in
- Filter Drier Overall Length4.25 in
- Height2" in
- Lay In Length3.69 in
- Length5.75 in
- Maximum Working Pressure400 PSIG
- Shell Material & FinishPainted
- Shipping Height3.8 in
- Shipping Length3.9 in
- Shipping Point37406
- Shipping Weight1.8 lb
- Shipping Width9.4 in
- Solder Sprocket Depth5.75 in
- TypeCOMPACTED BEAD
- UL ListedTrue
- UL RecognizedTrue
- Weight13.5 lb
- Width3.6875 in
