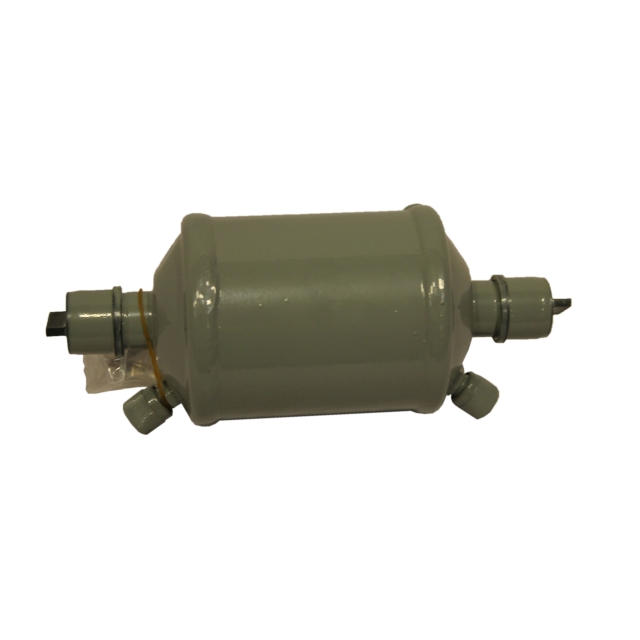

3/4" Sweat (ODF) Suction Line Filter Drier ,16 CU IN
3/4" Sweat (ODF) Suction Line Filter Drier ,16 CU IN
Description
- Charcoal blend for soluble contaminant and wax removal.
- Dual access valves.
- Solid copper fittings.
- Corrosion resistant epoxy powder paint finish.
Solid core with special blend to maximize acid, moisture, and wax removal. For use with CFC, HCFC and HFC refrigerants.
Documents
There are no documents available.
Specifications
- BrandTotaline
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant16
- Line TypeSuction
- Nominal Connection Size3/4" in
- RefrigerantCFC, HCFC, HFC
- Application• Solid Core With Special Blend To Maximize Acid,Moisture, And Wax Removal.• For Use With CFC, HCFC And HFC Refrigerants.
- Cutout Length5.5 in
- Diameter3.140625 in
- Filter Drier Overall Length6.75 in
- Height3-9/64" in
- Lay In Length4.62 in
- Length6.75 in
- Maximum Working Pressure500 PSIG
- Shell Material & FinishPainted
- Shipping Height3.4 in
- Shipping Length3.4 in
- Shipping Point37406
- Shipping Weight1.8 lb
- Shipping Width8.6 in
- Solder Sprocket Depth3.37 in
- TypeSOLID CORE
- UL ListedTrue
- UL RecognizedTrue
- Weight2 lb
- Width3.140625 in
