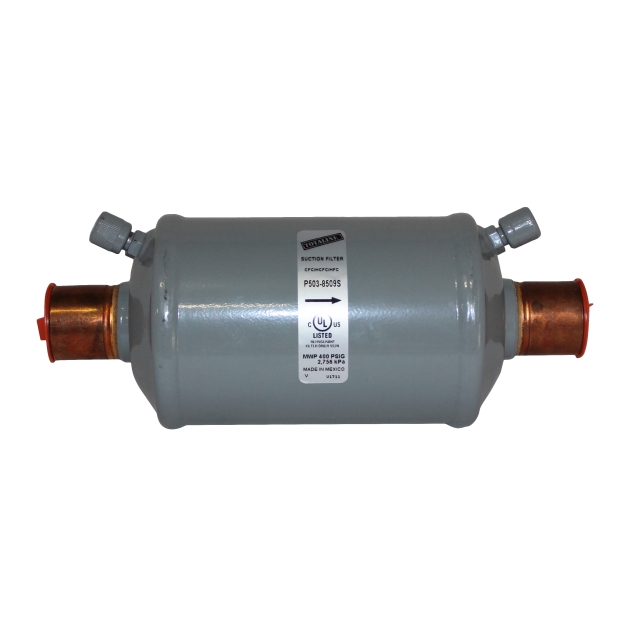

1-1/8" Sweat (ODF) Suction Line Filter Drier ,50 CU IN
1-1/8" Sweat (ODF) Suction Line Filter Drier ,50 CU IN
Description
- Solid copper fittings
- Dual Access Valves
- Corrosion Resistant Paint Finish
- High Filtration Capacity
Premium suction line filter drier for moisture, acid & contaminant removal. For use with CFC, HCFC, and HFC refrigerants. Totalines P503-8 Series is a high capacity suction line filter drier that incorporates beaded desiccant plus a filter.
Documents
There are no documents available.
Specifications
- BrandTotaline
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Core Material & FinishCompacted Bead
- Effective Volume Desiccant50
- Line TypeSuction
- Nominal Connection Size1-1/8" in
- RefrigerantCFC, HCFC, HFC
- Application• Premium Suction Line Filter Drier Formoisture, Acid & Contaminantremoval.• For Use With CFC, HCFC, And Hfcrefrigerants.• Totaline’S P503-8 Series Is A Highcapacity Suction Line Filter Drier Thatincorporates Beaded Desiccant Plusa Filter.
- Cutout Length7.03 in
- Diameter3.6875 in
- Filter Drier Overall Length8.84 in
- Height3-11/16" in
- Lay In Length6.12 in
- Length8.84375 in
- Maximum Working Pressure500 PSIG
- Shell Material & FinishPainted
- Shipping Height4.2 in
- Shipping Length11.8 in
- Shipping Point37406
- Shipping Weight11.65 lb
- Shipping Width4.1 in
- Solder Sprocket Depth0.91 in
- TypeCOMPACTED BEAD
- UL ListedTrue
- UL RecognizedTrue
- Weight3.5 lb
- Width3.6875 in
