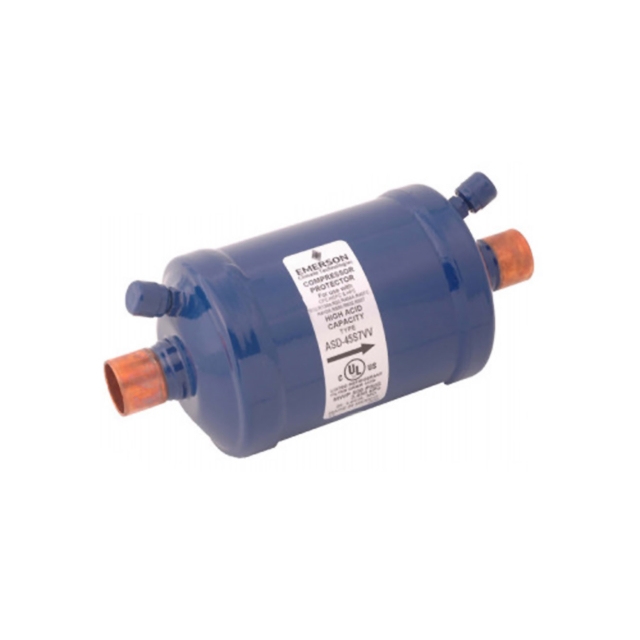

7/8" Sweat (ODF) Suction Line Filter Drier ,45 CU IN
7/8" Sweat (ODF) Suction Line Filter Drier ,45 CU IN
Description
- Outstanding filtration for ultimate compressor protection
- Dual access valves for easy pressure readings
- Solid copper connections
- Corrosion resistant epoxy powder paint finish
The ASD is a premium suction line filter drier for use with CFC, HCFC and HFC refrigerants. The ASD is optimized for high moisture, acid, and solid contaminant removal
Specifications
- BrandEmerson
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Core Material & FinishCompacted Bead
- Effective Volume Desiccant45
- Line TypeSuction
- Nominal Connection Size7/8" in
- ApplicationThe ASD Is A Premium Suction Line Filter Drier For Use With CFC, HCFC And Hfcrefrigerants. The ASD Is Optimized For High Moisture, Acid, And Solid Contaminantremoval.
- Diameter3.69 in
- Height3.69 in
- Length7.94 in
- Maximum Working Pressure500 PSIG
- Shell Material & FinishPainted
- Shipping Height3.94 in
- Shipping Length9.45 in
- Shipping Point37406
- Shipping Weight2 lb
- Shipping Width3.78 in
- TypeCOMPACTED BEAD
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Weight29.9375 lb
- Width5.56 in
