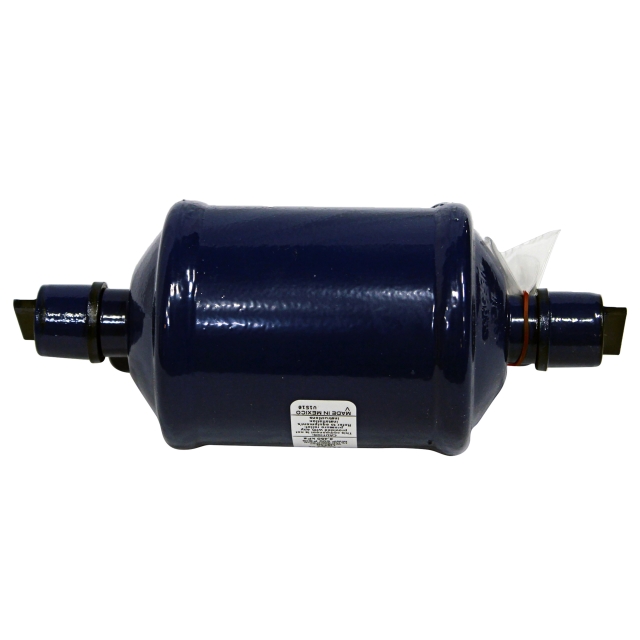

3/4" Sweat (ODF) Suction Line Filter Drier ,16 CU IN
3/4" Sweat (ODF) Suction Line Filter Drier ,16 CU IN
Description
- Dual access valves for easy pressure readings
- Corrosion resistant epoxy powder paint finish
- Activated carbon blend for soluble contaminant and wax
- Solid copper connections
The ASK utilizes a solid core with an activated carbon blend to maximize acid, moisture and wax removal. It is for use with CFC, HCFC and HFC refrigerants.
Specifications
- BrandEmerson
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Effective Volume Desiccant16
- Line TypeSuction
- Nominal Connection Size3/4" in
- ApplicationThe ASK Utilizes A Solid Core With An Activated Carbon Blend To Maximize Acid, Moistureand Wax Removal. It Is For Use With CFC, HCFC And HFC Refrigerants.
- Diameter3.14 in
- Length6.75 in
- Maximum Working Pressure500 PSIG
- Shell Material & FinishPainted
- Shipping Height3.4 in
- Shipping Length8.6 in
- Shipping Point37406
- Shipping Weight1 lb
- Shipping Width3.4 in
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Weight2 lb
- Width3.14 in
