7/8" Sweat (ODF) Suction Line Filter Drier ,16 CU IN
7/8" Sweat (ODF) Suction Line Filter Drier ,16 CU IN
Description

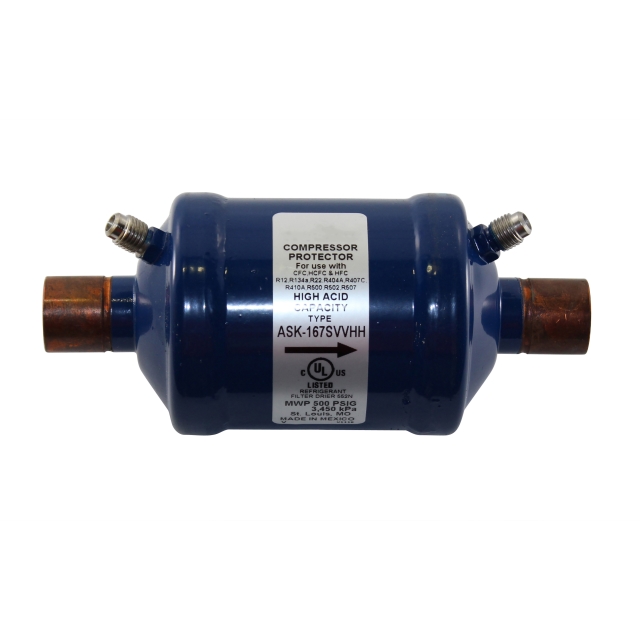

Emerson Electric Co. (White-Rodgers) 4.63" x 6.94", 7/8" ODF Soldered x 7/8" ODF Soldered, 16 Cu Inch, 500 PSIG, Epoxy Powder Painted, Solid Copper Connection, Dual Access Valve, Activated Carbon, Suction Line Filter Drier for CFC/HCFC/HFC R-12/R-134A Refrigerant System
The ASK utilizes a solid core with an activated carbon blend to maximize acid, moisture and wax removal. It is for use with CFC, HCFC and HFC refrigerants.
Features & Benefits
- Activated Carbon Blend for Soluble Contaminant and Wax
- Dual Access Valves for Easy Pressure Readings
Specifications
- Item: Suction Line Filter Drier, Activated Carbon
- Size: 7.5 Inch Diameter x 9.88 Inch Length
- Material: Solid Copper (Connection)
- Color/Finish: Epoxy Powder Painted
- Used On Item: R-12/R-134A/R-450A/R-513A/R-744 Refrigerant System
- Used On Model/Brand: CFC/HCFC/HFC
- Applicable Standard: UL (Canada and US), UL, CUL Desiccant Volume 30 Cubic Inch; Filtration 40 Micron; Access Type Dual Access Valve; Desiccant Blend Charcoal; End Connection 7/8 Inch ODF Soldered x 7/8 Inch ODF Soldered; Pressure Rating 500 PSIG; Constructional Feature Corrosion Resistant
Specifications
- BrandEmerson
- BurnoutNo
- Connection TypeSweat (ODF)
- Effective Volume Desiccant16
- Line TypeSuction
- Nominal Connection Size7/8" in
- ApplicationThe ASK Utilizes A Solid Core With An Activated Carbon Blend To Maximize Acid, Moistureand Wax Removal. It Is For Use With CFC, HCFC And HFC Refrigerants.
- Length6.94 in
- Maximum Working Pressure500 PSIG
- Shipping Height3.4 in
- Shipping Length8.5 in
- Shipping Point37406
- Shipping Weight1 lb
- Shipping Width3.5 in
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Weight2 lb
