"00"® Cartridge Circulators

• Unique replaceable cartridge design -field serviceable
• Manufactured in a variety of sizes tomatch system requirements
• Direct drive - low power consumption
• Residential and light commercial applications
• Universal flange to flange dimension
• Less flange - indicates less the companion flange that determinesthe connection size
• IFC - Features an Integral Flow Check

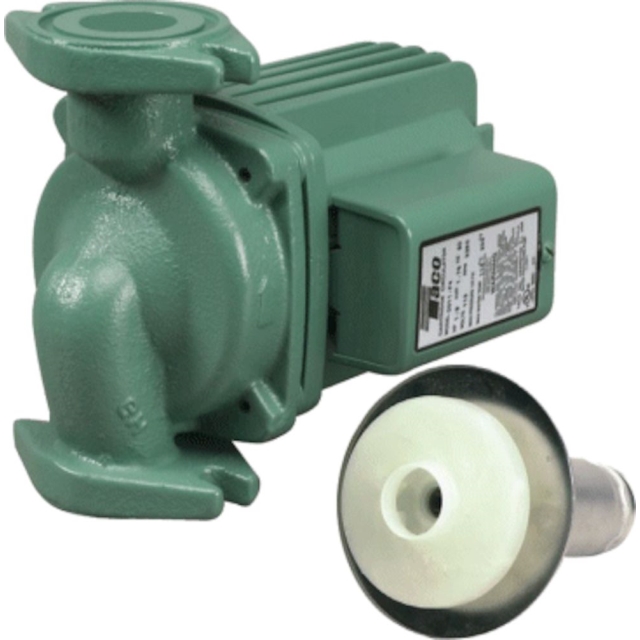

Model 0011 Cartridge Circulator

• ACB Anti-condensate baffle with ambient air flow protects motor windings against condensate buildup
• High velocity designed for high-head/medium-flow applications in large residential/light commercial closed-loop hydronic heating and chilled water cooling systems
• Pressure rating: 125 psi
• Temperature range: 40°F to 230°F (4°C to 110°C)
• Connection sizes: 3/4", 1", 1-1/4", 1-1/2" flanged
• 1/8hp @ 3250 rpm 115-1-60 PSC impedance protected motor
