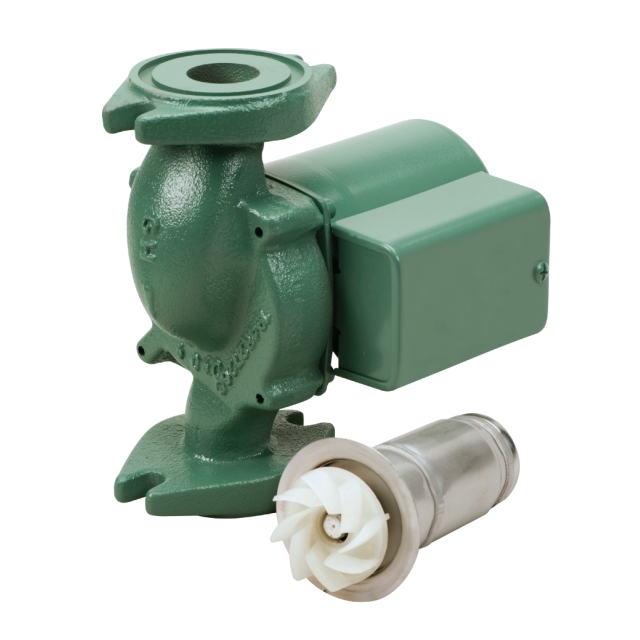

3/4" or 1" or 1-1/4" or 1-1/2" Suction, 3/4" or 1" or 1-1/4" or 1-1/2" Discharge, Flanged x Flanged, 1/25 HP, 115 VAC 60 Hz 1-Phase 0.74 A, 3250 RPM, 125 PSI, Lead-Free, Non-Metallic Impeller, Cast Iron Casing, Compact, Direct Drive, In-Line, Wet Rotor, 1-Stage, Cartridge Circulating Pump. The Taco 007 Cartridge Circulator is the most popular hydronic circulator sold today. With its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.

Specifications

• Type Compact, Direct Drive, In-Line, Wet Rotor, 1-Stage
• Suction Size 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch
• Discharge Size 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch
• End Connection Flanged x Flanged
• Overall Dimensions 6-3/8 Inch Length x 4-3/4 Inch Width x 6-3/8 Inch Height
• Flow Rate 23 GPM
• Discharge Head 10 Foot
• Casing Material Cast Iron
• Shaft Material Ceramic
• Impeller Material Non-Metallic
• Warranty 3 Year
• Power Rating 1/25 HP
• Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 0.74 Amp
• Speed Rating 3250 RPM
• Temperature Rating 40 to 230 Deg F
• Pressure Rating 125 PSI
• Motor Type Permanent Split Capacitor, Impedance Protected
• Inclusions/Features Aluminum Stator Housing, Stainless Steel Cartridge, Carbon Bearing, EPDM O-Ring and Gasket, Self-Lubricating
• Exclusions Mechanical Seal
• Application Hydronic Heating, Radiant Heating, Hydro-Air Fan Coil, Indirect Water Heating, Chilled Water Cooling, Domestic Water System, Indoor Use
• Applicable Standard UL (Canada and US), NSF/ANSI 372
• Lead-Free

Feature & Benefits

• Standard High Capacity Output
• Compact Design
• Quiet, Efficient Operation
• Unique Replaceable Cartridge Design - Field Serviceable
• Direct Drive Low Power Consumption
• Self-Lubricating
• No Mechanical Seal
• Unmatched Reliability Maintenance Free
• Universal Flange-to-Flange Dimensions
• Cast Iron Construction
• Lead-Free
