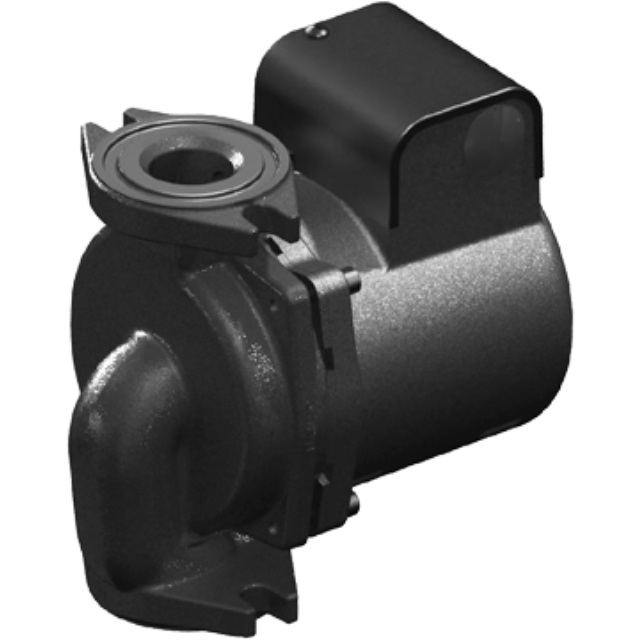

2400 Series High Capacity Circulators

• Anti-condensate design for chilled water
• Powerful close-coupled, maintenance free motor
• Aluminum motor housing, stainless steel shaft
• Permanently lubricated, sealed for life bearings
• Mechanical Seal: Carbon/Silicon-Carbide
• Universal flange to flange dimensions - Ideal for retrofits
• Dual electrical knock-outs
• Dual pressure taps, suction/discharge
• Flow range: 0-147 gpm
• Head range: 0-51'
• Maximum temperature range: 40°F to 225°F (4°C to 107°C)
• Maximum pressure: 150 psi
• 60Hz, Single-Phase, 3450 rpm
