TCLE7-1/2HW100 1/2X5/8 SAE S/T
TCLE7-1/2HW100 1/2X5/8 SAE S/T
Description

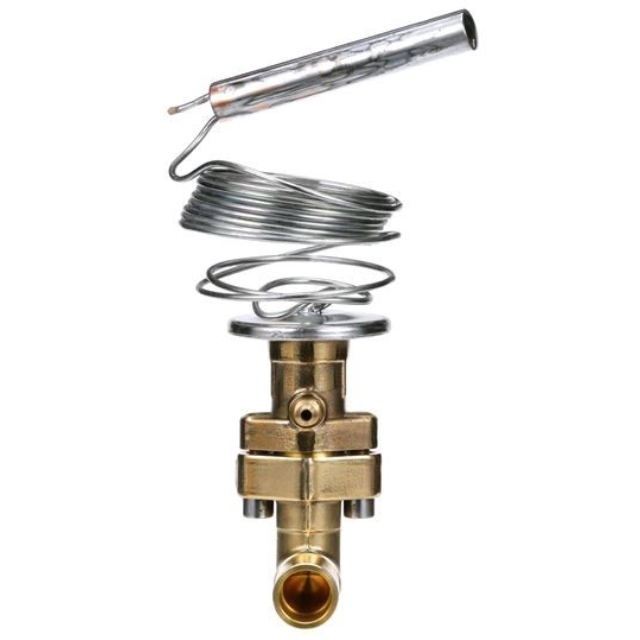

Emerson Electric Co. (White-Rodgers) 1/2" x 5/8", SAE Flare x SAE Flare, 7-1/2 Ton Capacity, 450 PSIG, R-22, Maximum Operating Pressure, Pressure Limiting, Take-Apart, Bi-Directional, Adjustable Superheat, Small Capacity, Straight Through, Refrigerant Thermostatic Expansion Valve with External Equalizer and 5 ' Capillary Tube
The T-Series Take-Apart valves, with adjustable superheat and replaceable, interchangeable components are ideal for original equipment and field replacements in air conditioning, heat pump and refrigeration applications.
Features & Benefits
- Stainless Steel Replaceable Power Assembly Eliminate Corrosion and Prevent Valve Failure
- Two Body Size Provide Capacity from 1/4 to 20 Ton
- Bodies, Cages and Power Assemblies can be Ordered Separately or in Pre-Packaged Service Kits
- Bi-Directional Capability up to 3-1/2 Tons for R-22 on One Valve Superheat Control in Cooling and Heating
Specifications
- Type: Balanced Port Design, Bi-Directional, Adjustable Superheat, Standard Body, 90 Degree
- Nominal Size: 3/8 Inch x 1/2 Inch
- End Connection: SAE Flare x SAE Flare
- Pressure Rating: 450 PSIG
- Inclusions/Features: External Equalizer, Stainless Steel Power Assembly
- Exclusions: Bleed Hole
- Application: Refrigerant, Air Conditioner and Heat Pump
- Applicable Standard: UR/CUR, CRN Capillary Tube Length 5 Foot; Refrigerant Type R-22/R-407A; Capacity 5-1/2 Ton; Charge Code Medium Temperature
Specifications
- BrandFactory Authorized Part
- Shipping Height4 in
- Shipping Length7 in
- Shipping Weight3 lb
- Shipping Width4 in
