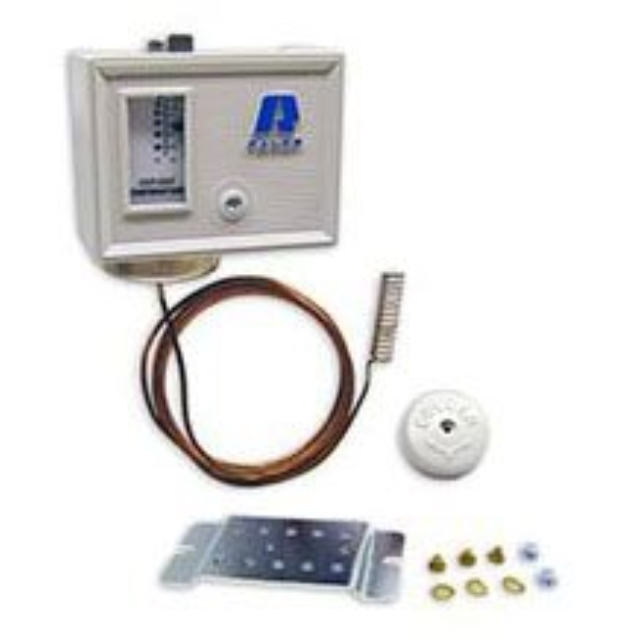

These controls are designed to shut down a piece of equipment if the operating conditions begin to approach freezing (as water freezes it expands and will rupture the chiller barrel tubes). The 016-264 has a manual reset feature, necessitating human intervention in the event of a shutdown.

Features & Benefits

• Maximum Adjustment Accuracy with 7 Revolution Range Adjustment Screw
• Universal Mounting and Compact Design
• Laser-Welded Bellows for Extended Life
• Wide Range Adjustable Differential
• 10 Times Setting Sensitivity of Most Other Wide Range Control
• Gas-Filled, Non-Position-Sensitive Bulb
• NEMA 1 Enclosure with Non-Conductive Cover

Specifications

• Type: Air Coil Capillary
• Temperature Range: -35 to 95 Deg F
• Contact Rating: 24 Amp at 120/240 Volt AC (Resistive Load), 17 Amp at 120/240 Volt AC (Full Load), 102 Amp at 120/240 Volt AC (Locked Rotor)
• Contact Configuration: SPDT
• Enclosure: NEMA 1
• Application: Kitchen, Utility Room, Laundry, Healthcare, Hospitality, Government, Education, Commercial Property Management and Refrigerator
• Approval: UL (Canada and US)
Differential Temperature Rating 4 to 50 Deg F; Power Rating 144 Volt Amp at 24 Volt AC, 720 Volt Amp at 120/240 Volt AC, 120 Volt Amp at 241/600 Volt AC (Pilot Duty)
