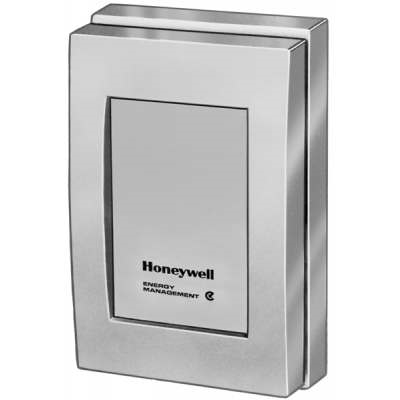

T7067A Thermostat and T7067B Transmitter control space temperature when used with W973 Logic Panel.

Features & Benefits

• Separate Heat and Cool Adjustable Set Point Levers Provide Adjustable Deadband from 3 to 30 Deg F
• Separate 1 to 16 Volt DC Voltage Ramps Provide Independent Heating and Cooling Signals to W973 Single Zone Logic Panel
• Two Light-Emitting Diodes (LEDs) Under T7067 Cover for System Checkout
• C7046A Discharge Air Sensor Provides Temperature Anticipation
• One T7067 Can Control up to 6 W973 Panels in Parallel
• Mount on Standard 2 x 4 Inch Vertical Outlet Box or on a Non-Conductive Flat Surfaces
• All Models Include Wiring Plate and Locking Cover

Specifications

• Type: Solid State, Electronic
• Cover Type: Plastic, Vertical
• Color: Sliver-Bronze Painted
• Voltage Rating: 20 Volt DC
• Current Rating: 20 Milliamp
• Size: 2-13/16 Inch Width x 1-1/4 Inch Depth x 4-5/8 Inch Height
• Approval: ASHRAE 90-75
• Output Type Voltage Ramp
• Control System W973 Single Zone
• Setting Temperature Range 55 to 85 Deg F
• Includes Wiring Plate
