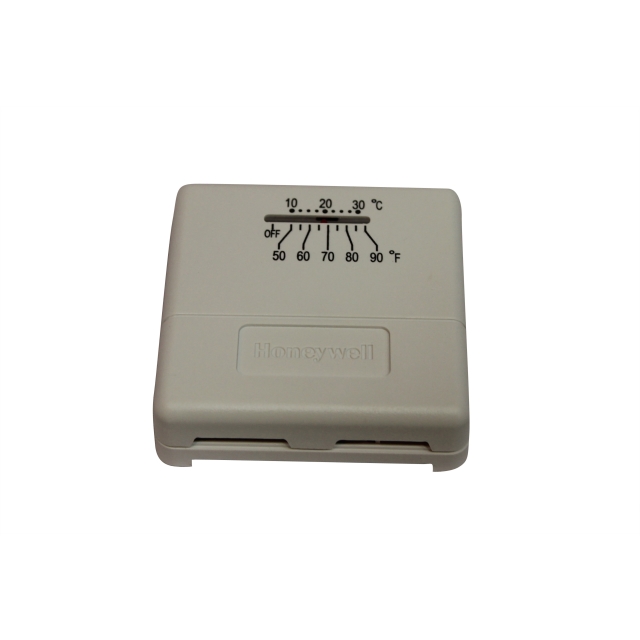

Honeywell Non-Programmable, 1 Heat Thermostat
Honeywell Non-Programmable, 1 Heat Thermostat
Description
Honeywell International Inc. / Resideo Technologies, Inc. 20 to 30 VAC, Square, Premier White, Non-Programmable, 1-Heat, Thermostat
Contractors, home and building owners choose Honeywell for many reasons. For you, reliability, application flexibility and install ease stand out. For your customers, easy use, accuracy and design make Honeywell the most trusted thermostat name.
Features & Benefits
- Snap Acting Bi-Metal Switch Uses No Mercury and Does Not Require Leveling
Specifications
- Type: Non-Programmable, 1-Heat
- Cover Type: Square
- Color: Premier White
- Voltage Rating: 20 to 30 Volt AC
- Current Rating: 1 Amp at 24 Volt AC (Heating/Fan)
- Switch Type: SPST, Snap Action
- Size: 3-1/8 Inch Width x 7/8 Inch Depth x 3-1/8 Inch Height
- Inrush Current 2.5 Amp (Heat), 5 Amp (Fan) at 24 Volt AC
- Sensor Element Bi-Metal
- Humidity Rating 5 to 90 Percent Relative (Non-Condensing)
- Terminal Designations W, R
- Accuracy +/-3 Deg F
- Setting Temperature Rating 50 to 90 Deg F
- Includes Dealer Logo Pocket
Documents
Specifications
- BrandHoneywell
- Built In Wi-FiFalse
- Digital ProgrammableNon-Programmable
- Line Voltage (60Hz)24V AC
- Power MethodHardwired
- Stages1 Heat
- Support Capacitive TouchFalse
- Amps0
- ApplicationHeat Only
- BacklitFalse
- ColorWhite
- DisplayAnalog
- Height3.125 in
- Parts ApplicationStd heat/Cool
- Shipping Height1.2 in
- Shipping Length3.2 in
- Shipping Point37406
- Shipping Weight0.01 lb
- Shipping Width4.6 in
- Temperature Range45 To 95
- UL ListedFalse
- UL RecognizedFalse
- Voltage24
- Width3.125 in
