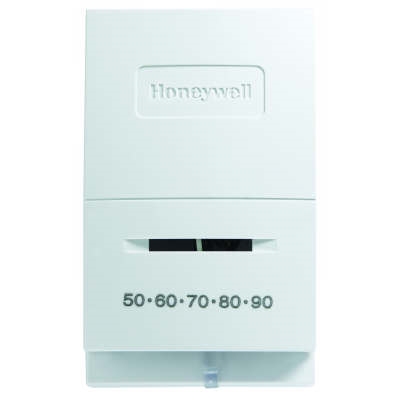

Honeywell Non-Programmable, 1 Heat Thermostat
Honeywell Non-Programmable, 1 Heat Thermostat
Description
Honeywell International Inc. / Resideo Technologies, Inc. 20 to 30 VAC, 0.02 to 1 A, Premier White, SPST, Precision Snap Action, 1-Heat, Non-Programmable, Low Voltage, Thermostat
Contractors, home and building owners choose Honeywell for many reasons. For you, reliability, application flexibility and install ease stand out. For your customers, easy use, accuracy and design make Honeywell the most trusted thermostat name.
Features & Benefits
- Vented Cover for Improved Temperature Sensing
- Setting Lever and Thermometer Scale on Thermostat Face
- Mounts Directly on the Wall or on Vertical Outlet Box
- Integrated Thermometer and Setting Scale
Specifications
- Type: Non-Programmable, Low Voltage, 1-Heat
- Cover Type: Vented, Rectangular Vertical
- Color: Premier White
- Voltage Rating: 20 to 30 Volt AC
- Current Rating: 0.02 to 1 Amp (Heating)
- Switch Type: SPST, Precision Snap Action
- Size: 2-7/8 Inch Width x 1-3/8 Inch Depth x 4-3/4 Inch Height
- Sensor Element Bi-Metal
- Mounting Type Wall/Vertical Outlet Box
- Terminal Designation R, W
Documents
Specifications
- BrandHoneywell
- Built In Wi-FiFalse
- Digital ProgrammableNon-Programmable
- Line Voltage (60Hz)24V AC
- Power MethodHardwired
- Stages1 Heat
- Support Capacitive TouchFalse
- Amps1
- ApplicationHeat Only
- BacklitFalse
- ColorWhite
- DisplayAnalog
- Height4.75 in
- LanguageEnglish
- Length2.825 in
- Parts ApplicationHP W/Aux
- Shipping Height2.1 in
- Shipping Length5.3 in
- Shipping Point37406
- Shipping Weight0.0313 lb
- Shipping Width3.4 in
- Temperature Range45 To 95
- UL ListedFalse
- UL ListedFalse
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage20/30
- Weight0.32 lb
- Width1.375 in
