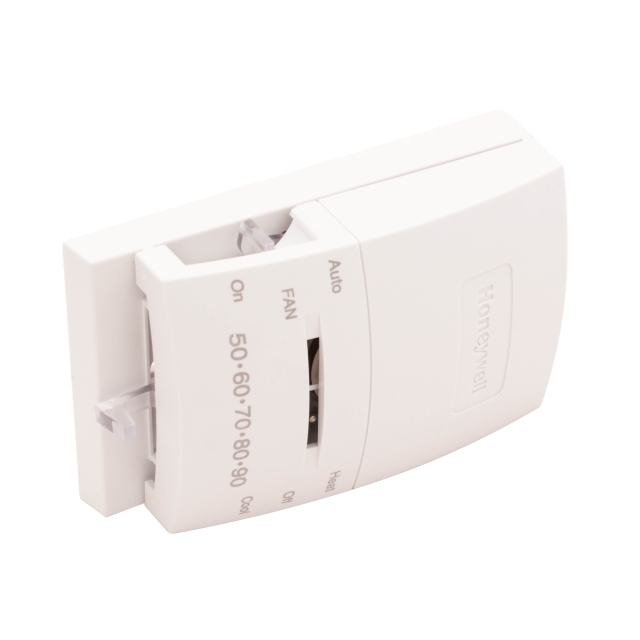

Honeywell Non-Programmable, 1 Heat/1 Cool Thermostat
Honeywell Non-Programmable, 1 Heat/1 Cool Thermostat
Description
Honeywell International Inc. / Resideo Technologies, Inc. 20 to 30 VAC, 0.02 to 1 A, Premier White, SPST, Precision Snap Action, 1-Heat/1-Cool Pump, 1-Heat/1-Cool Conventional, Non-Programmable, Low Voltage, Manual Changeover, Thermostat
Contractors, home and building owners choose Honeywell for many reasons. For you, reliability, application flexibility and install ease stand out. For your customers, easy use, accuracy and design make Honeywell the most trusted thermostat name.
Features & Benefits
- Integrated Thermometer and Temperature Setting Scale
- Mount Directly on Wall/Outlet Box
Specifications
- Type: Non-Programmable, Low Voltage, 1-Heat/1-Cool Heat Pump/Conventional, Manual Changeover
- Cover Type: Rectangular Vertical
- Color: Premier White
- Voltage Rating: 20 to 30 Volt AC
- Current Rating: 0.02 to 1 Amp Running (Cooling/Heating)
- Switch Type: SPST, Precision Snap Action
- Size: 2-7/8 Inch Width x 1-3/8 Inch Depth x 4-3/4 Inch Height
- Sensor Element Bi-Metal
- Switch Position Heat-Off-Cool (System), Auto-On (Fan)
- Terminal Designation R, RC, W, Y, G, O, B
- Includes Dealer Logo Pocket
Documents
Specifications
- BrandHoneywell
- Built In Wi-FiFalse
- Digital ProgrammableNon-Programmable
- Line Voltage (60Hz)24V AC
- Power MethodHardwired
- Stages1 Heat/1 Cool
- Support Capacitive TouchFalse
- Amps1
- Application1 Heat/1 Cool Conventional Systems And Heat Pumps With No Auxiliary Heat
- BacklitFalse
- ColorWhite
- DisplayAnalog
- Height4 3/4 in
- Length2.825 in
- Parts ApplicationHP W/Aux
- Shipping Height0.25 in
- Shipping Length2 in
- Shipping Weight0.0313 lb
- Shipping Width5 in
- Temperature Range45 To 95
- UL ListedFalse
- UL RecognizedFalse
- Voltage20/30
- Width1.375 in
