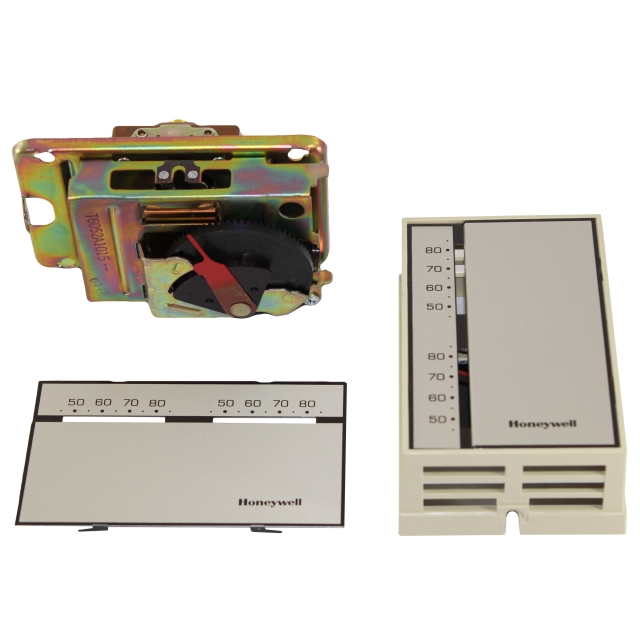

Heavy Duty Line Voltage Thermostats used to control fan coils, fans, motor starters, valves, contactors, and circulator motors in heating and/or cooling systems.

Features & Benefits

• Provide Good Line Voltage Comfort Control
• Removable Set Point Knob Locks Set Point and Prevents Tampering

Specifications

• Type: Line Voltage, Heavy Duty, 2-Heat/2-Cool
• Cover Type: Plastic, Horizontal/Vertical, Locking
• Color: Tan
• Voltage Rating: 120/240 Volt AC 50/60 Hertz
• Current Rating: 16 Amp at 120 Volt AC, 8 Amp at 240 Volt AC (1-Stage)/8 Amp at 120 Volt AC, 4 Amp at 240 Volt AC (2-Stage) Full Load, 96 Amp at 120 Volt AC, 48 Amp at 240 Volt AC (1-Stage), 48 Amp at 120 Volt AC, 24 Amp at 240 Volt AC (2-Stage) Locked Rotor
• Switch Type: (2) SPDT
• Size: 3-1/8 Inch Width x 1-5/8 Inch Depth x 5 Inch Height
• Approval: UL, CSA
• Sensor Element Vapor Filled Dual Diaphragm
• Setting Temperature Range 46 to 84 Deg F
• Differential Temperature 3.2 Deg F
• Electrical Connection Type Screw Terminal
